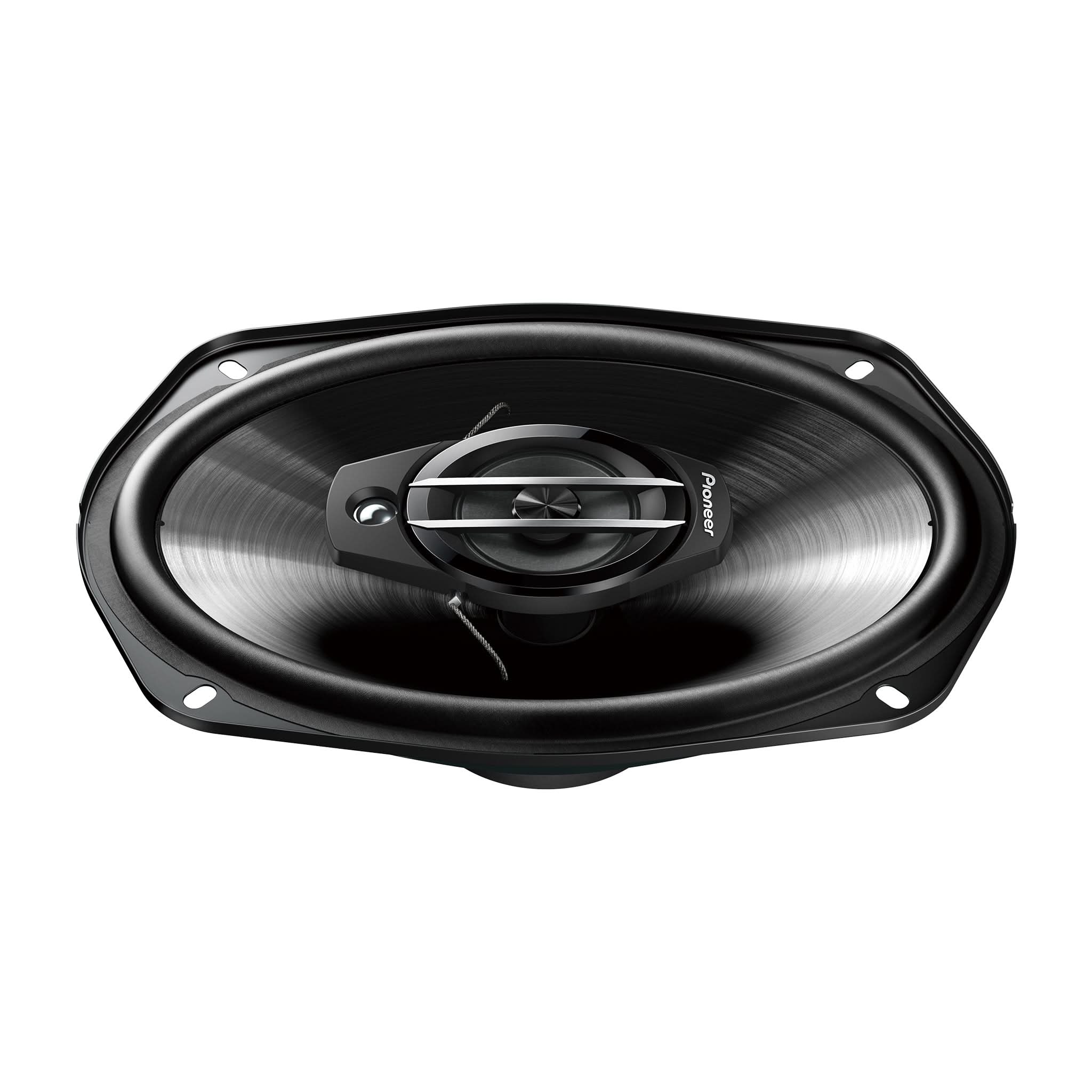

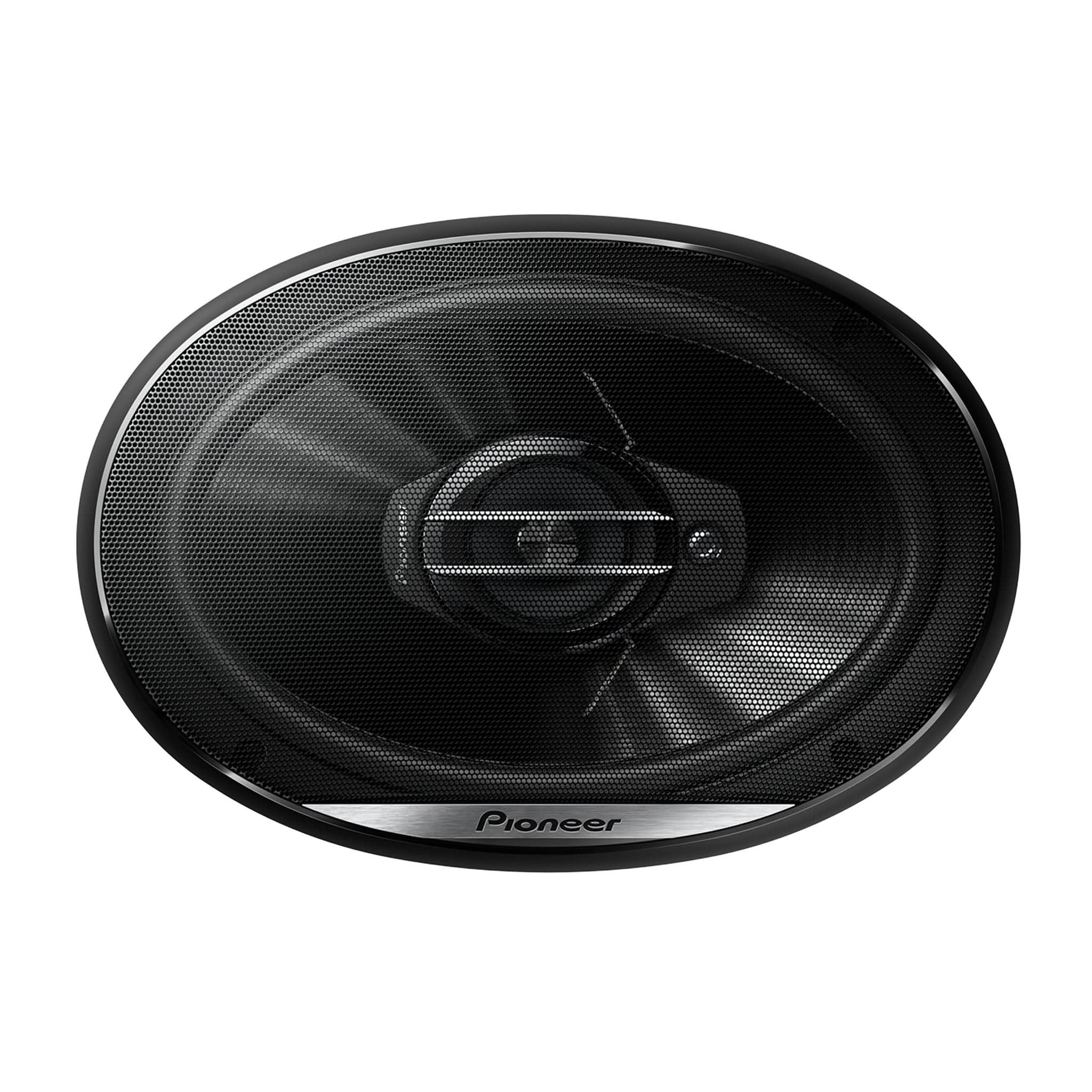

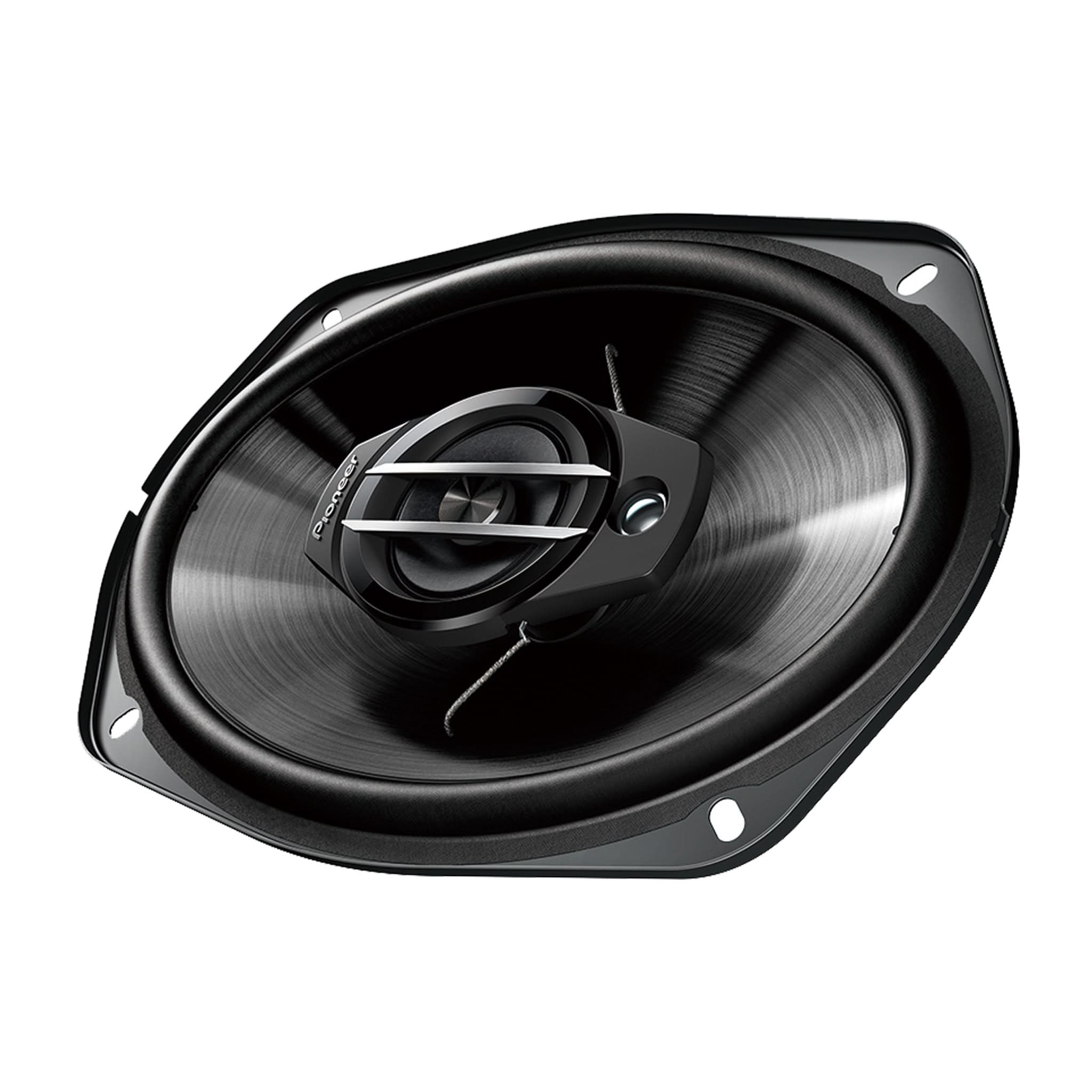

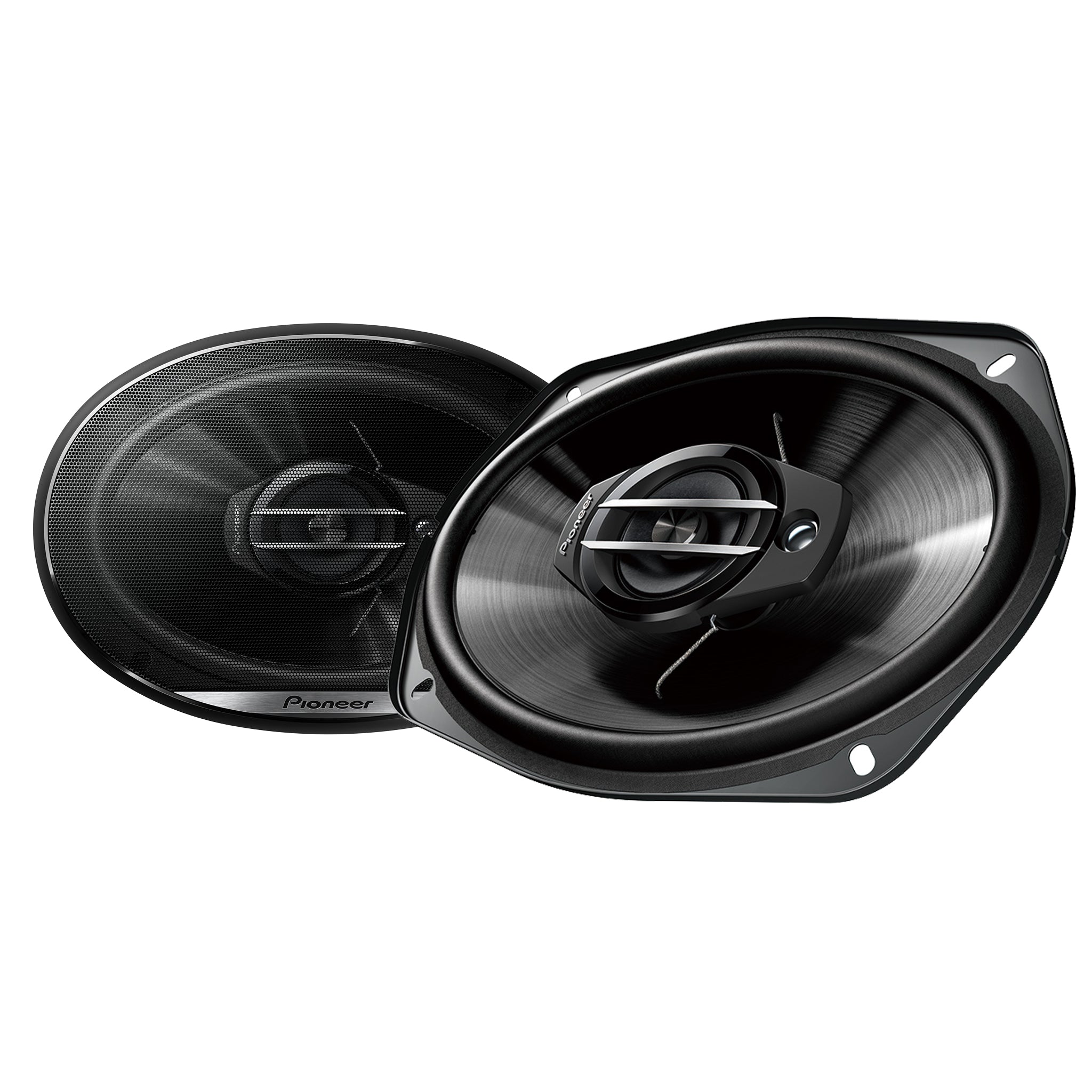

6 x 9 – 3-way. 400 W Max Power. Mica-reinforced IMPP™ cone. 1.86″ (48mm) Cone Midrange and 11mm tweeter – Coaxial Speakers (pair)
Features
400 Watts Max. Power / 45 Watts Nominal Power
6 x 9 Mica reinforced IMPP™ cone
1-7/8″ (48mm) cellulose fiber cone midrange
11mm (PET) hard dome tweeter
Frequency range: 32 Hz to 32 kHz
Speaker Impedance: 4 ohms
Speaker Efficiency: 90 dB (1W/1M)
Patented Pioneer P.F.S.S. Spider
| Continuous Power Handling (Rms) – Watts 45 | Frequency Response 32 Hz to 32 kHz |
| Maximum Peak Power Handling – Watts 400 | Nominal Impedance – Ohm 4-Ohm |
| Sensitivity (1W/1M) 90 dB | System-Type Coaxial 3-way. Cone – Midrange. Dome – Tweeter |

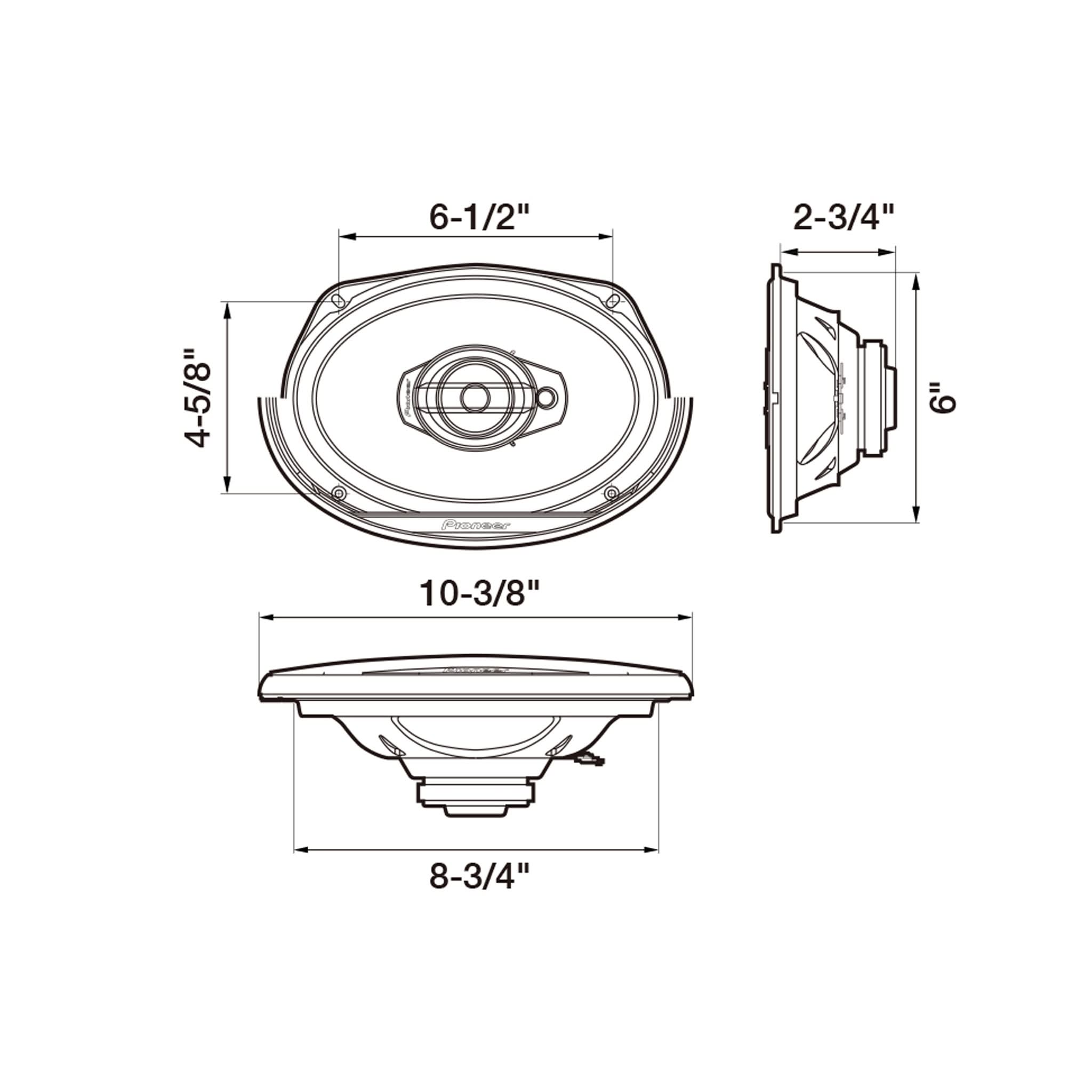

| Cut Out dimensions 8-3/4″ x 6″ | Midrange Dimensions 1.88″ |
| Mounting Depth 2-3/4″ – Midrange | Speaker Grill Included |
| Tweeter Dimensions 0.36″ | Woofer Dimensions 6″ x 9″ |
| Basket Material Metal | Cone Material IMPP – with MICA |
| Damper Cotton | Diaphragm Material Cellulose fiber – Midrange |
| Magnet Material Ferrite – Speakers. Ferrite – Midrange | Magnet Weight 5.4 oz – Speaker. 0.7 oz – Midrange |
| Surround Material Rubber Coated Cloth | Surround Type Rolled |
| Voice Coil Material Kapton | Voice Coil wire Copper |
| Wire Terminals Lug Type |
