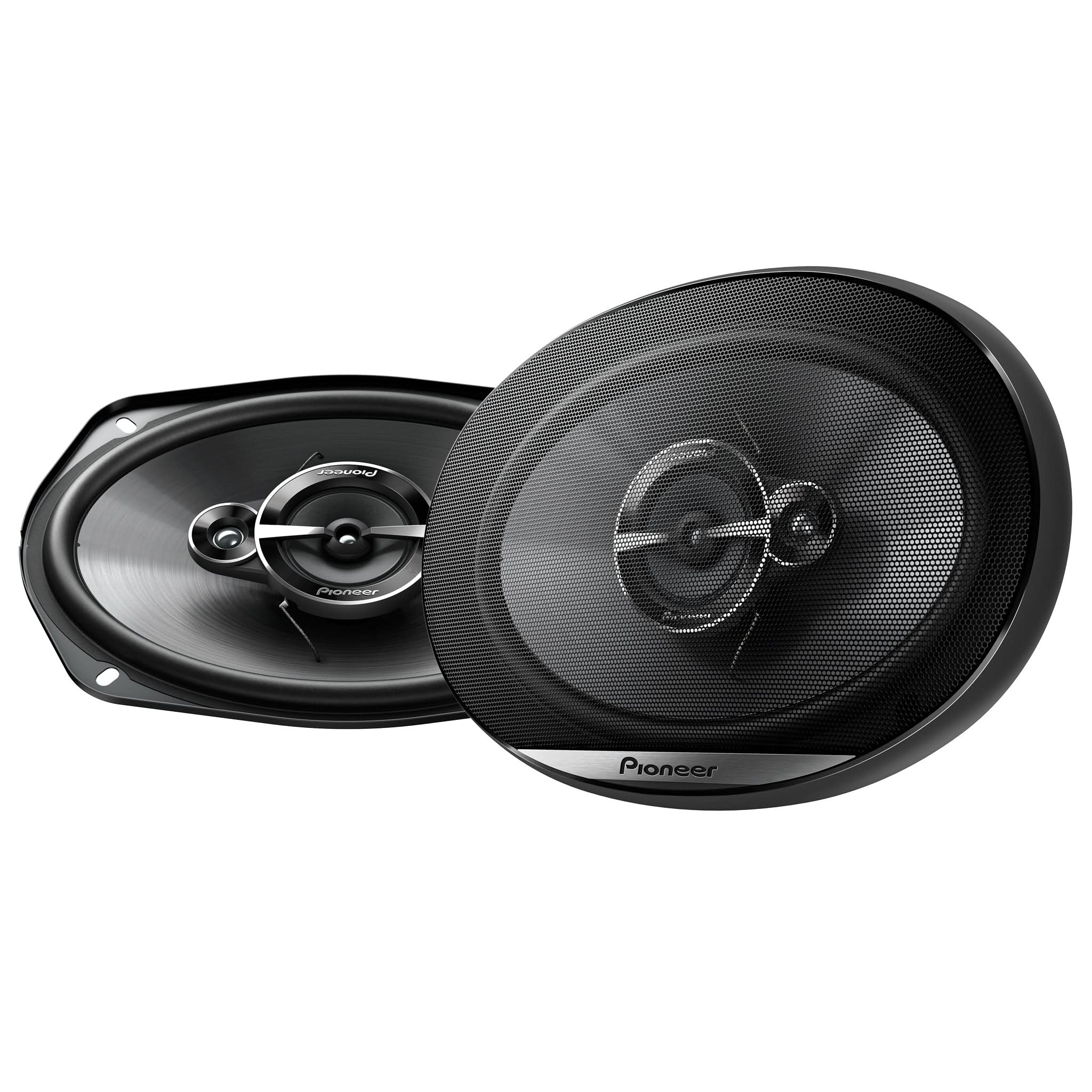

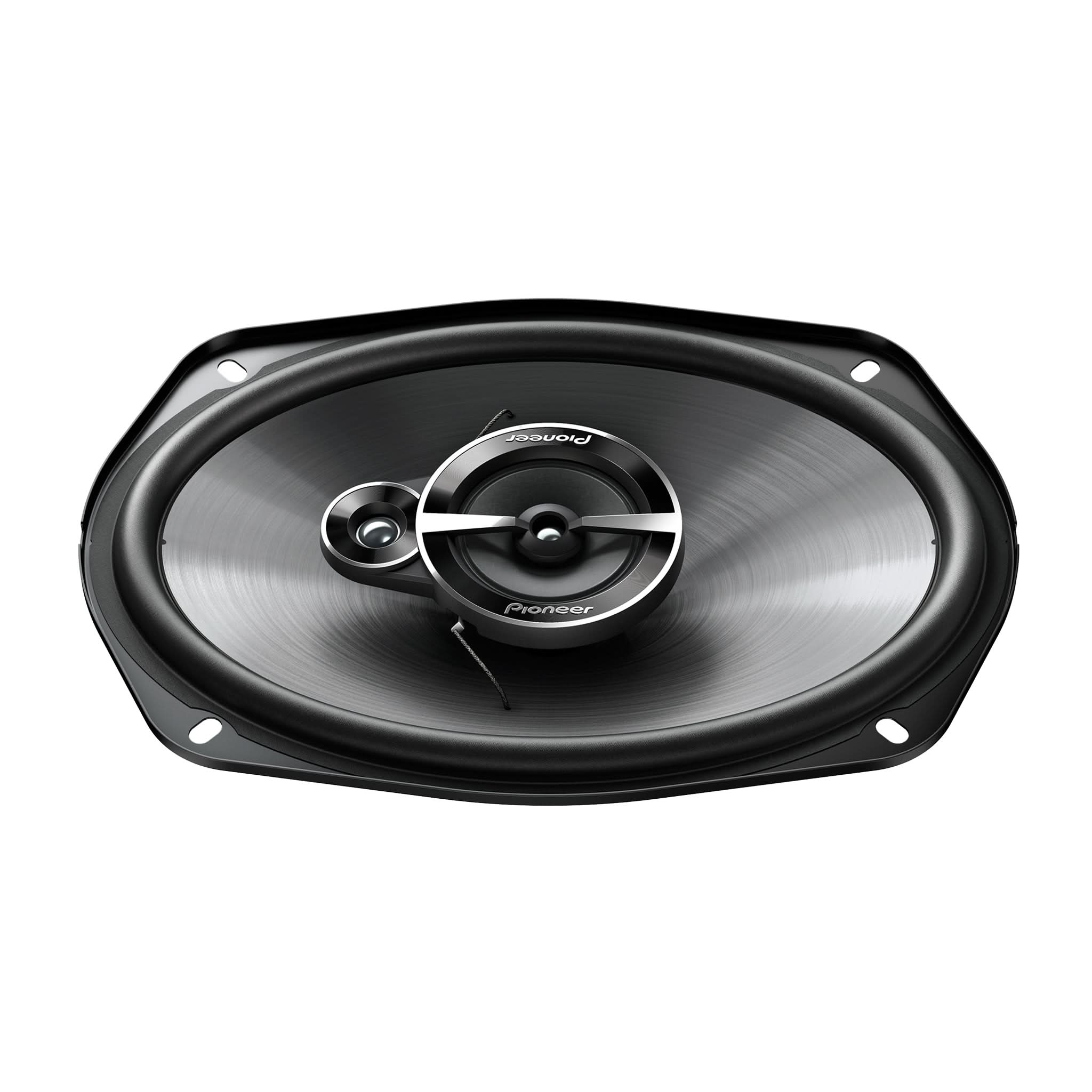

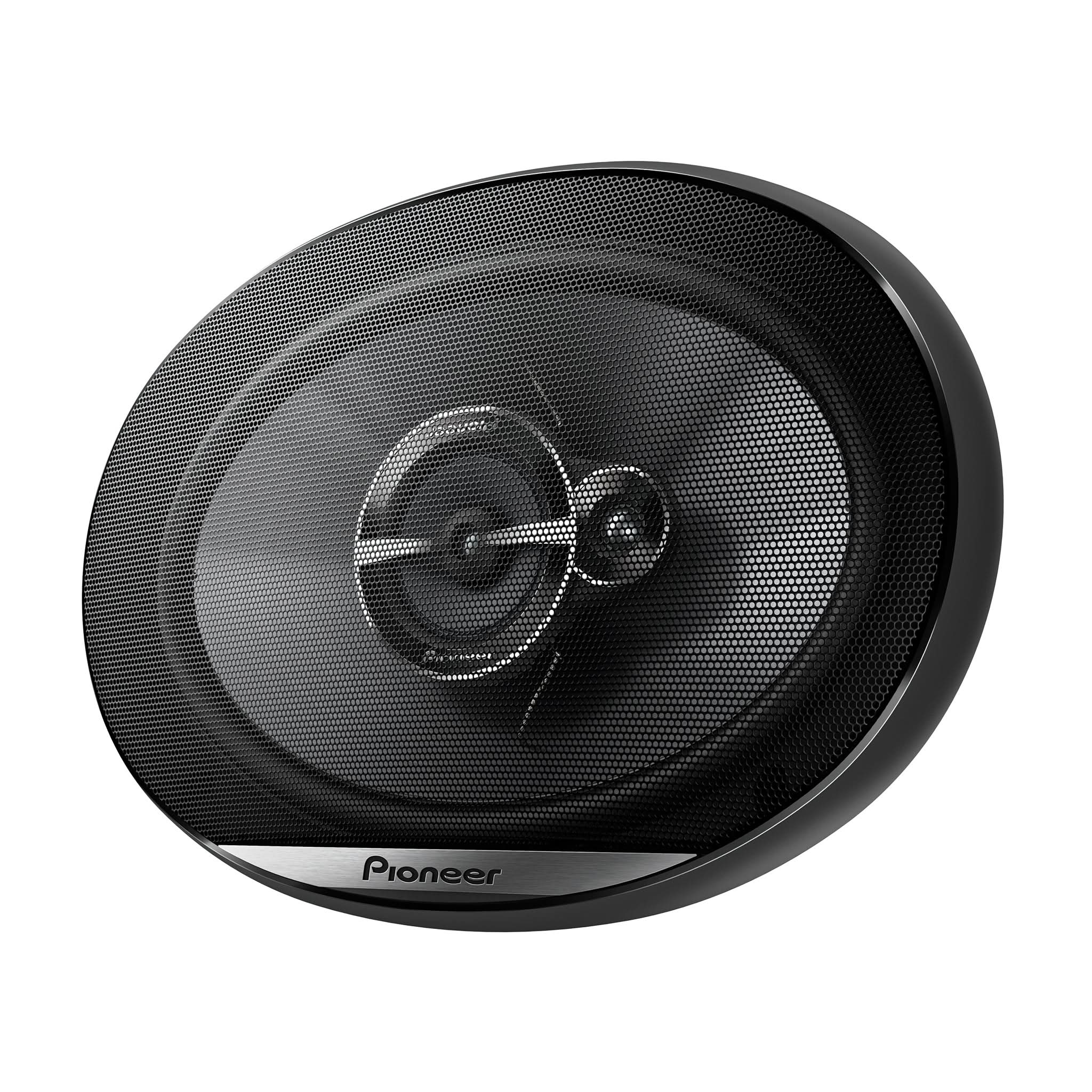

6″ x 9″ – 3-way. 400 W Max Power. IMPP™ cone. 11mm Tweeter and 2″ Cone Midrange – Coaxial Speakers (pair)
Features
G-Series 6″x9″ 3-way car speakers
Injection molded polypropylene IMPP™ and mica-reinforced composite woofer cone
Rubber-coated cloth surround
11mm PET dome tweeter and 2″ mixed pulp midrange driver
Handles up to 45 W RMS (400 W peak power)
Frequency range: 32-32.000 Hz
Sensitivity: 90 dB
| Continuous Power Handling (Rms) – Watts 45 | Frequency Response 32 Hz to 32 kHz |
| Maximum Peak Power Handling – Watts 400 | Nominal Impedance – Ohm 4-Ohm |
| Sensitivity (1W/1M) 90 dB | System-Type Coaxial 3-way. Dome – Tweeter |

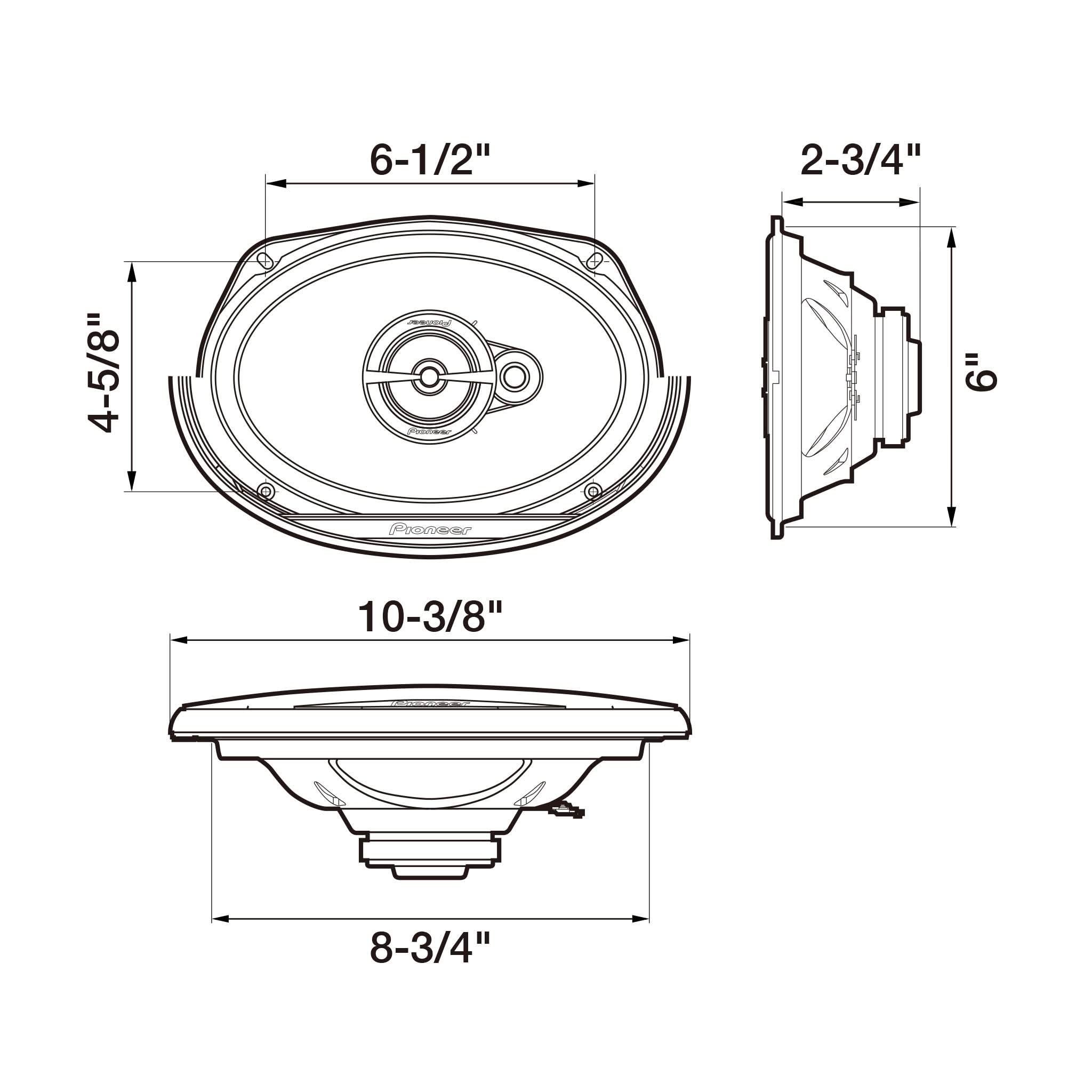

| Cut Out dimensions 6 x 8-3/4 | Midrange Dimensions 2″ |
| Mounting Depth 2-3/4″ – Midrange | Tweeter Dimensions 0.43″ |
| Woofer Dimensions 6″ x 9″ |
| Basket Material Stamped Metal | Cone Material IMPP – with MICA |
| Damper Cotton | Diaphragm Material Cellulose fiber – Midrange. Polyethylene terephthalate (PET) – Tweeter |
| Magnet Material Ferrite – Speaker. Ferrite – Midrange | Magnet Weight 5.4 oz – Speaker. 0.7 oz – Midrange |
| Surround Material Rubber Coated Cloth | Surround Type Rolled |
| Voice Coil Bobbin Kapton | Voice Coil wire Copper |
| Wire Terminals Lug Type |
