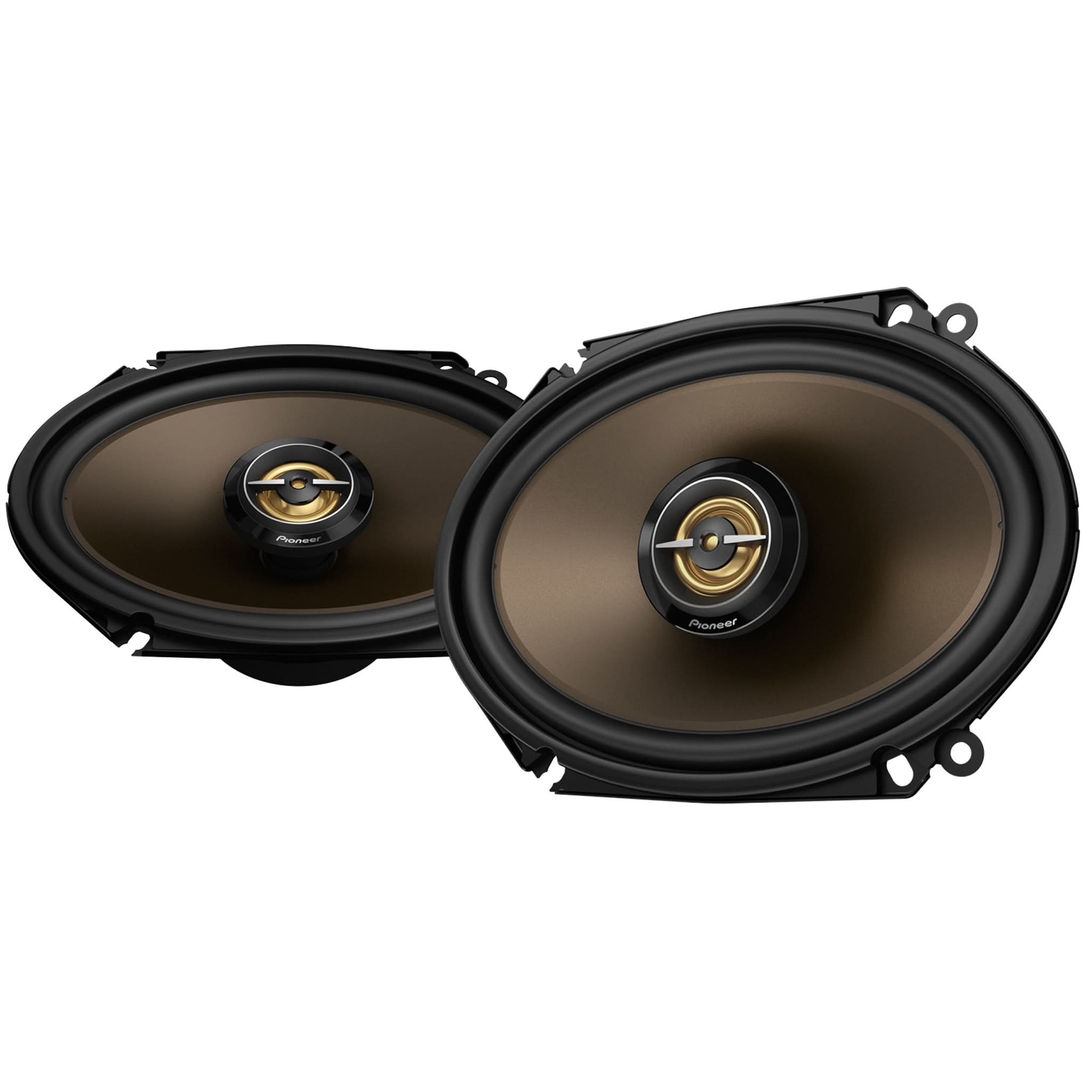

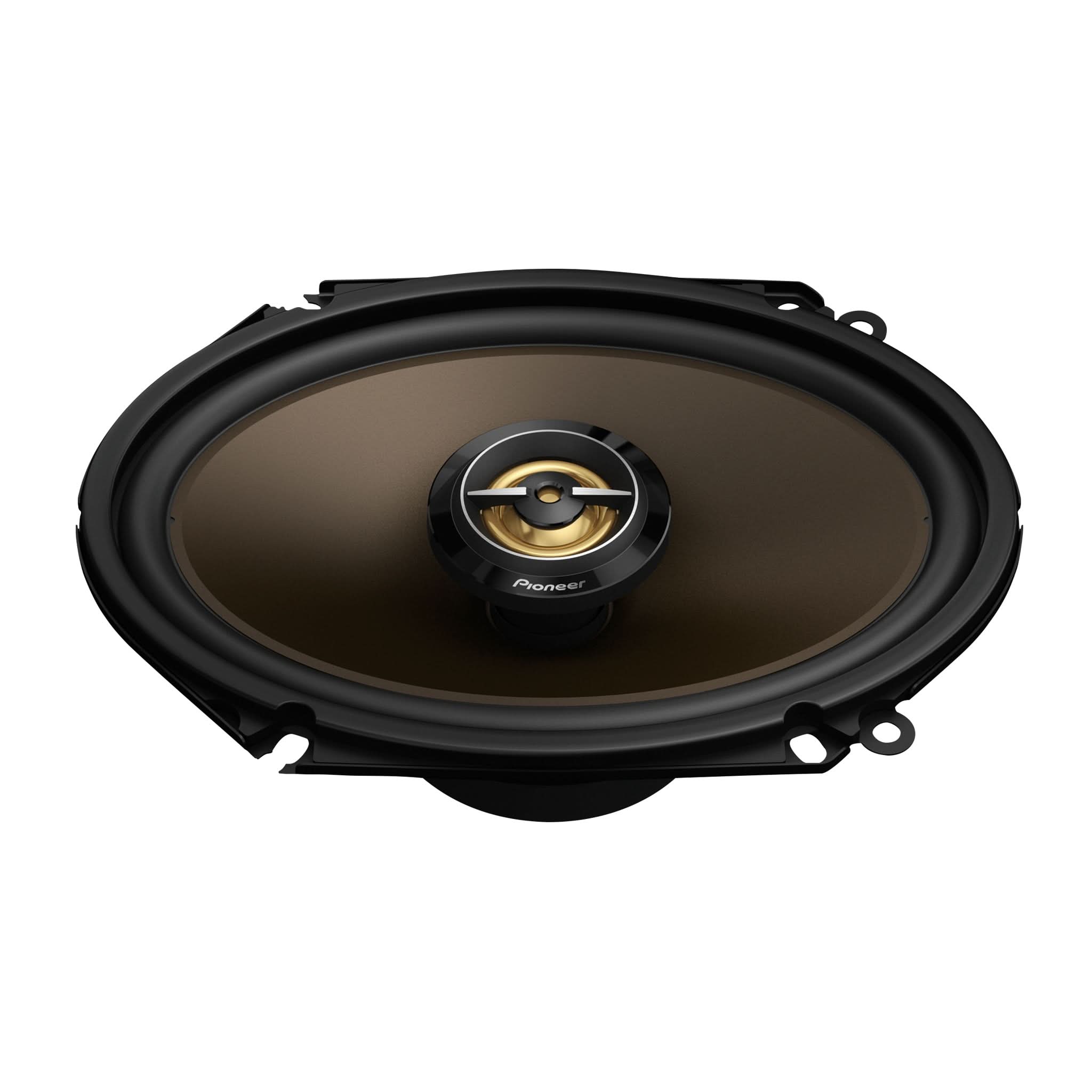

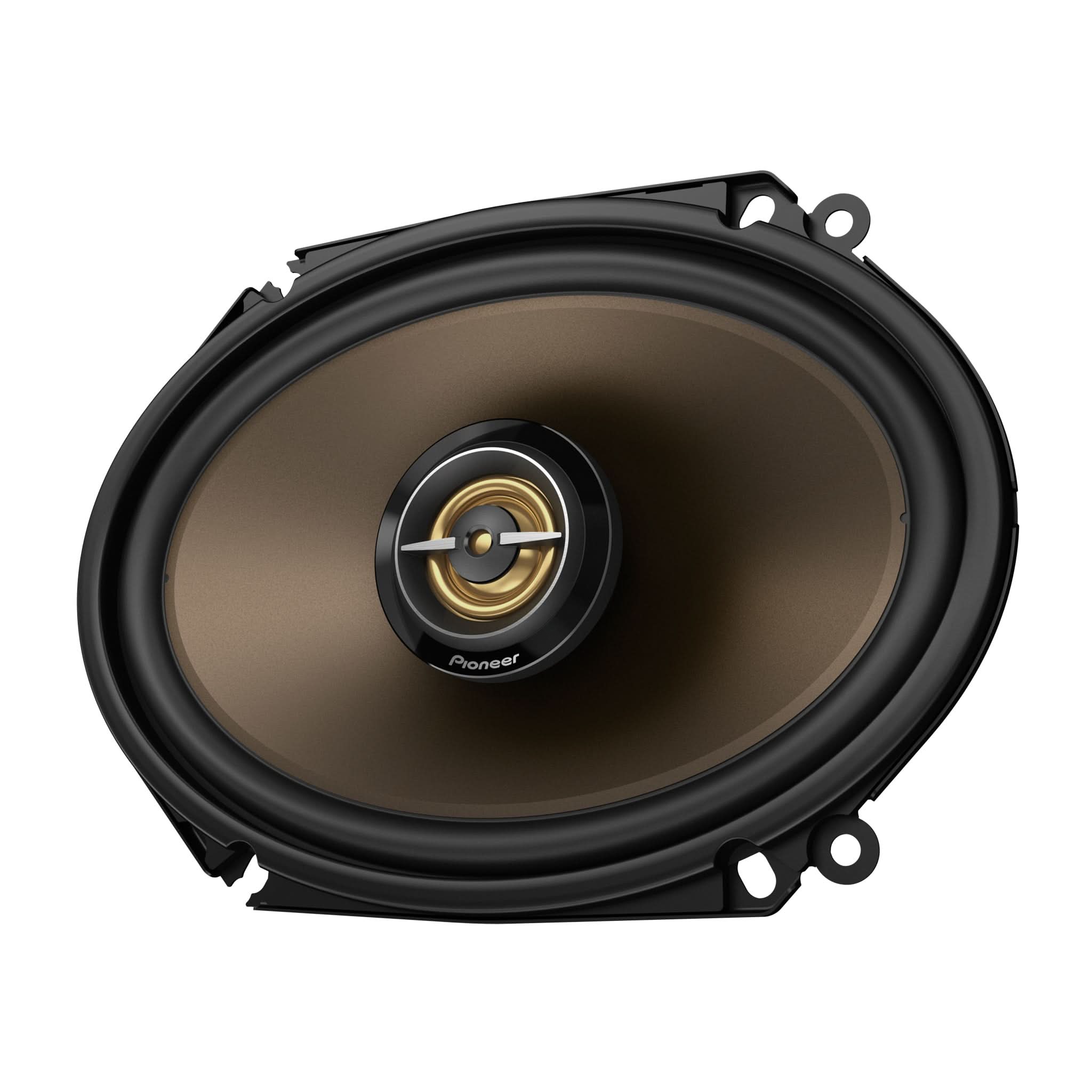

Pioneer TS-A683FH

6″ x 8″ – 2-way. 370 W Max Power. Aramid Fiber reinforced IMPP™ cone. Pioneer exclusive P.F.S.S. spider (Progressive Flex Suspension System). 20mm PEI Tweeter – Coaxial Speakers (pair)

Features

370 Watts Maximum Power

85 Watts Nominal Power

6″ x 8″ Aramid Fiber reinforced IMPP™ cone

20mm polyetherimide (PEI) hard dome tweeter

Frequency range: 34 Hz to 49 kHz

Speaker Impedance: 4 ohms

Speaker Efficiency: 90 dB (1W/1M)

• TS-6900PRO

  This product fits your selected vehicle

  6″ x 9″ – 2-way 600 W Max Power. Blended Pulp woofer Cone and 2.875″ (73 mm) Bulle… $130.00 Add to Compare

• TS-M651PRO

  This product fits your selected vehicle

  6.5″ – 500 W Max Power. Optimally Blended Pulp woofer Cone – PRO Series Midrange/W… $120.00 Add to Compare

• TS-B401PRO

  This product fits your selected vehicle

  4″ – 600 W Max Power. Field-serviceable Titanium Diaphragm. Aluminum Die-Cast Chas… $70.00 Add to Compare

• TS-A1681F

  This product fits your selected vehicle

  6.5″ – 4-way. 350 W Max Power. Carbon/Mica-reinforced IMPP™ cone. 1.63″ (42mm) Con… $110.00 Add to Compare

• TS-B351PRO

  This product fits your selected vehicle

  3.5″ – 300 W Max Power. Field-serviceable Titanium Diaphragm. Aluminum Die-Cast Ch… $60.00 Add to Compare

• TS-A879

  This product fits your selected vehicle

  3.5″ – 2-way. 450 W Max Power. Carbon/Mica-reinforced IMPP™ cone. 21mm PEI hard do… $70.00 Add to Compare

• TS-M801PRO

  This product fits your selected vehicle

  8.0″ – 700 W Max Power. Optimally Blended Pulp woofer Cone – PRO Series Midrange/W… $150.00 Add to Compare

• TS-A6991FH

  This product fits your selected vehicle

  6 x 9″ – 5-way. 750 W Max Power. Carbon/Mica-reinforced IMPP™ cone. 2.25″ (57mm) … $160.00 Add to Compare

• TS-A301TW

  This product fits your selected vehicle

  0.75″ – 450 W Max Power. PEI Hard Dome. in-line filter and multi-fit adapters incl… $55.00 Add to Compare

• TS-G650

  This product fits your selected vehicle

  6.5″ – 2-way. 300 W Max Power. IMPP™ cone. 30mm Tweeter – Coaxial Speakers (pair) $60.00 Add to Compare

TS-A683FH

Regular price $100.00 Add to Cart #shopify-section-template–24289673707889__main-product .yv-product-slider-wrapper {padding-top: 35px;} #shopify-section-template–24289673707889__main-product .yv-checkout-btn .add_to_cart.button {border-radius: 40px;} #shopify-section-template–24289673707889__main-product .ps-widget.ps-disabled {display: none !important;} #shopify-section-template–24289673707889__main-product .ps-widget.ps-enabled {display: block; margin-top: -10px; text-align: left;} #shopify-section-template–24289673707889__main-product .ps-widget.ps-enabled span {display: inline-block; border-bottom: 1px solid #181818; line-height: 1.4; cursor: pointer; transition: 0.2s all;} #shopify-section-template–24289673707889__main-product .ps-widget.ps-enabled span:hover. #shopify-section-template–24289673707889__main-product .ps-widget.ps-enabled span:focus {border-bottom: 1px solid transparent;}

PRODUCT PERFORMANCE

Continuous Power Handling (Rms) – Watts 85	Frequency Response 34 Hz to 49 kHz
Maximum Peak Power Handling – Watts 370	Nominal Impedance – Ohm 4-Ohm
Sensitivity (1W/1M) 90 dB	System-Type Coaxial 2-way. Polyetherimide (PEI) hard dome – Tweeter

FEATURES

CarSoundFit Yes	Cut Out dimensions 7-1/2″ x 5-1/4″
Mounting Depth 2-1/2″/63.5mm	Tweeter Dimensions 0.79″
Woofer Dimensions 6.5″

MATERIALS

Basket Material Iron Plate Press	Cone Material Carbon and Mica reinforced Injected Molded Polypropylene – IMPP
Custom Fit Basket Yes	Diaphragm Material Polyetherimide – Tweeter
Magnet Material Ferrite – Woofer	Magnet Weight 7.4 oz – Woofer. 0.2 oz – Tweeter
Surround Material Elastic Polymer	Surround Type Rolled
Voice Coil Bobbin Glass Imide	Voice Coil Material Glass Imide
Voice Coil wire Copper	Wire Terminals Lug Type
