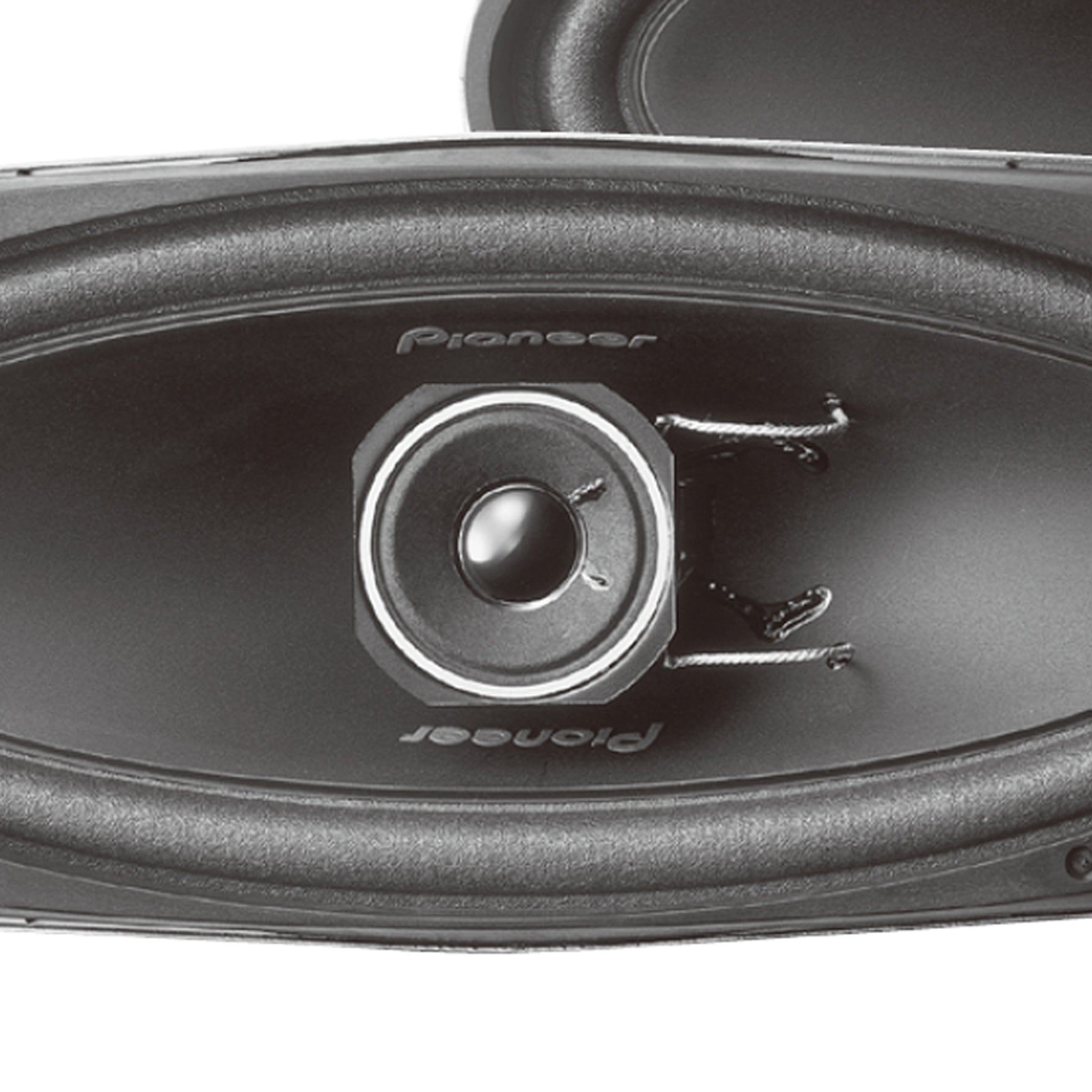

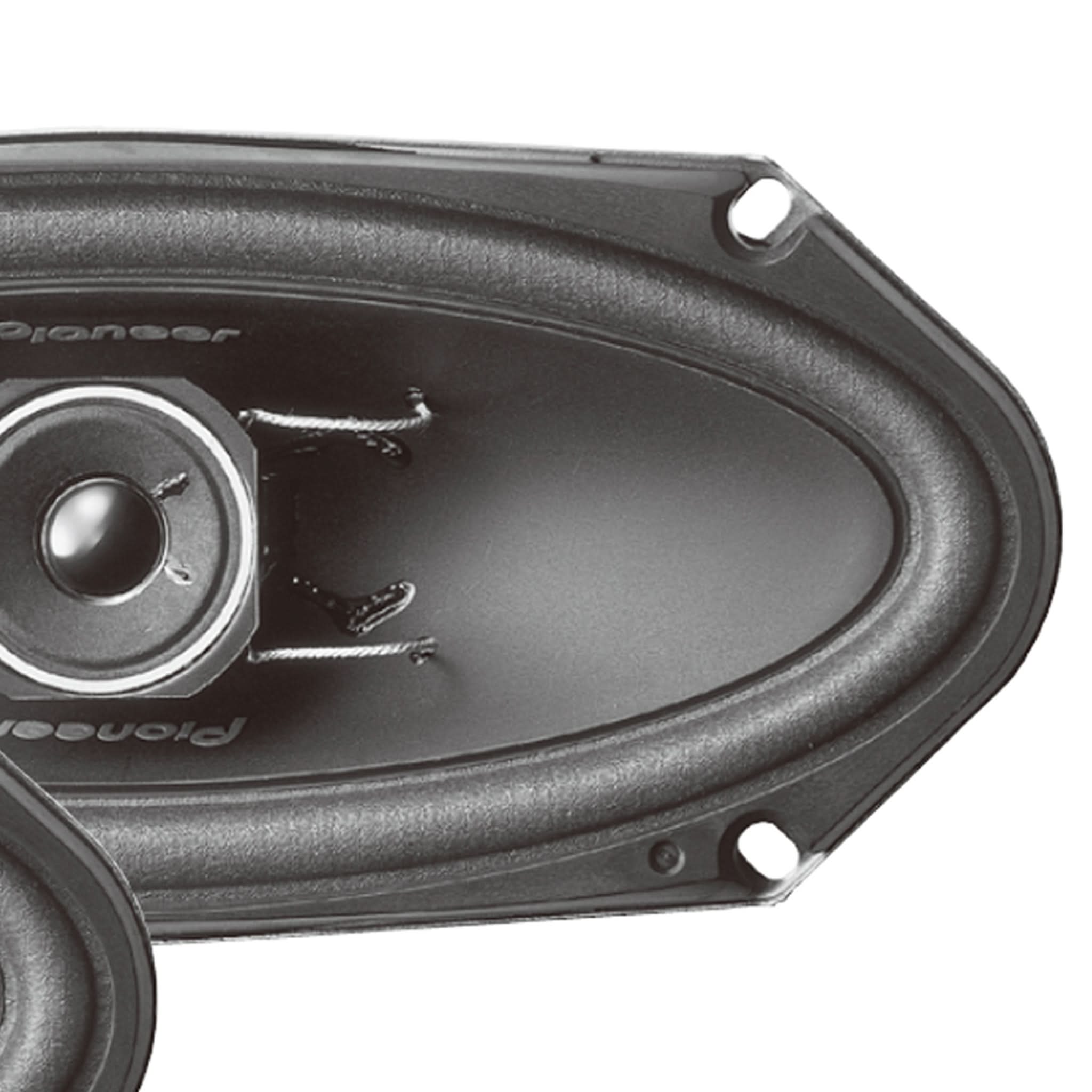

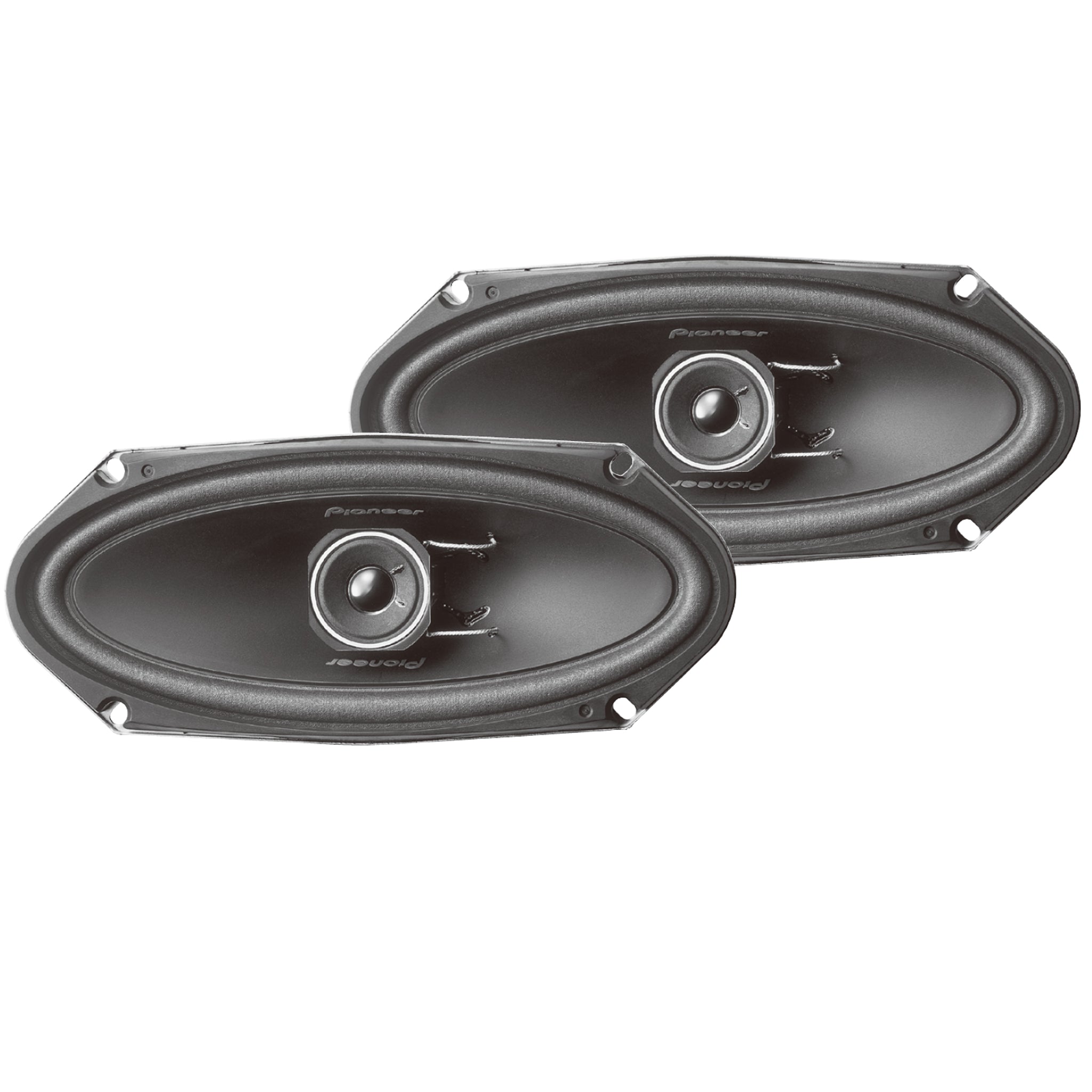

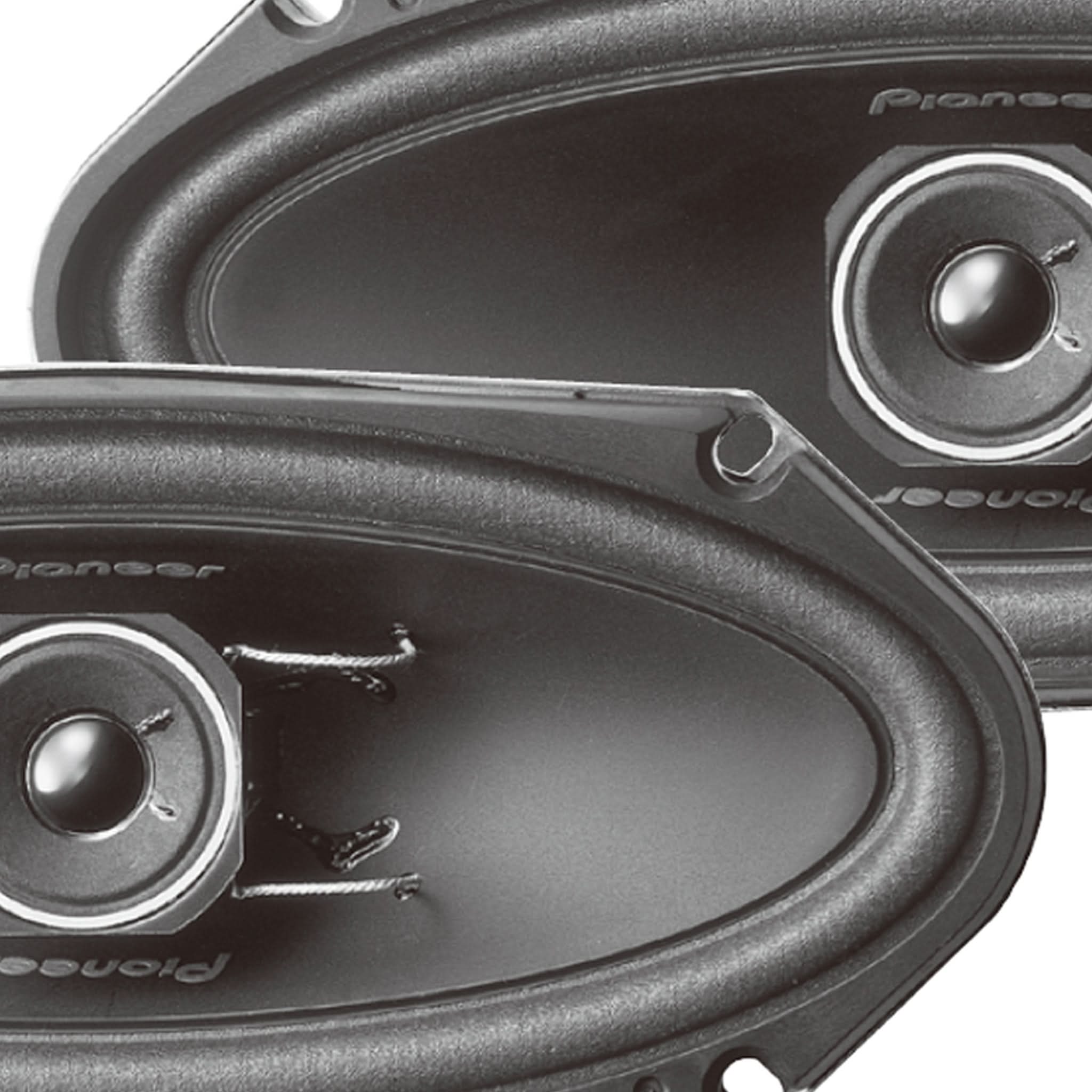

Pioneer TS-A4103

4″ x 10″ – 2-way. 120 W Max Power. IMPP™ cone Woofer. 1.63″ Tweeter – Rear Deck Mount for classic-cars. Coaxial Speakers (pair)

Features

120 Watts Max. Power / 35 Watts Nominal Power

4″x10 IMPP™ cone

1.625″ (42mm) cellulose fiber cone midrange/tweeter

Frequency range: 38 Hz to 23 kHz

Speaker Impedance: 4 ohms

Speaker Efficiency: 91 dB (1W/1M)

• TS-6900PRO

  This product fits your selected vehicle

  6″ x 9″ – 2-way 600 W Max Power. Blended Pulp woofer Cone and 2.875″ (73 mm) Bulle… $130.00 Add to Compare

• TS-M651PRO

  This product fits your selected vehicle

  6.5″ – 500 W Max Power. Optimally Blended Pulp woofer Cone – PRO Series Midrange/W… $120.00 Add to Compare

• TS-B401PRO

  This product fits your selected vehicle

  4″ – 600 W Max Power. Field-serviceable Titanium Diaphragm. Aluminum Die-Cast Chas… $70.00 Add to Compare

• TS-A1681F

  This product fits your selected vehicle

  6.5″ – 4-way. 350 W Max Power. Carbon/Mica-reinforced IMPP™ cone. 1.63″ (42mm) Con… $110.00 Add to Compare

• TS-B351PRO

  This product fits your selected vehicle

  3.5″ – 300 W Max Power. Field-serviceable Titanium Diaphragm. Aluminum Die-Cast Ch… $60.00 Add to Compare

• TS-A879

  This product fits your selected vehicle

  3.5″ – 2-way. 450 W Max Power. Carbon/Mica-reinforced IMPP™ cone. 21mm PEI hard do… $70.00 Add to Compare

• TS-M801PRO

  This product fits your selected vehicle

  8.0″ – 700 W Max Power. Optimally Blended Pulp woofer Cone – PRO Series Midrange/W… $150.00 Add to Compare

• TS-A6991FH

  This product fits your selected vehicle

  6 x 9″ – 5-way. 750 W Max Power. Carbon/Mica-reinforced IMPP™ cone. 2.25″ (57mm) … $160.00 Add to Compare

• TS-A301TW

  This product fits your selected vehicle

  0.75″ – 450 W Max Power. PEI Hard Dome. in-line filter and multi-fit adapters incl… $55.00 Add to Compare

• TS-G650

  This product fits your selected vehicle

  6.5″ – 2-way. 300 W Max Power. IMPP™ cone. 30mm Tweeter – Coaxial Speakers (pair) $60.00 Add to Compare

TS-A4103

Regular price $120.00 Add to Cart #shopify-section-template–24289673707889__main-product .yv-product-slider-wrapper {padding-top: 35px;} #shopify-section-template–24289673707889__main-product .yv-checkout-btn .add_to_cart.button {border-radius: 40px;} #shopify-section-template–24289673707889__main-product .ps-widget.ps-disabled {display: none !important;} #shopify-section-template–24289673707889__main-product .ps-widget.ps-enabled {display: block; margin-top: -10px; text-align: left;} #shopify-section-template–24289673707889__main-product .ps-widget.ps-enabled span {display: inline-block; border-bottom: 1px solid #181818; line-height: 1.4; cursor: pointer; transition: 0.2s all;} #shopify-section-template–24289673707889__main-product .ps-widget.ps-enabled span:hover. #shopify-section-template–24289673707889__main-product .ps-widget.ps-enabled span:focus {border-bottom: 1px solid transparent;}

PRODUCT PERFORMANCE

Continuous Power Handling (Rms) – Watts 35	Frequency Response 38 Hz to 23 kHz
Maximum Peak Power Handling – Watts 120	Nominal Impedance – Ohm 4-Ohm
Sensitivity (1W/1M) 91 dB	System-Type Coaxial 2way

FEATURES

Cut Out dimensions 9-1/2″ x 3-7/8″	Mounting Depth 2-1/2″/64mm
Tweeter Dimensions 1.65″	Woofer Dimensions 5.25″

MATERIALS

Basket Material Metal	Cone Material IMPP – with MICA
Damper Aramid Fiber	Diaphragm Material Cellulose fiber – Tweeter
Magnet Material Ferrite – Woofer. Ferrite – Tweeter	Magnet Weight 8.8 oz – Woofer. 0.8 oz – Tweeter
Surround Material Cloth	Surround Type Rolled
Voice Coil Material Aluminum	Voice Coil wire Copper
Wire Terminals Lug Type
