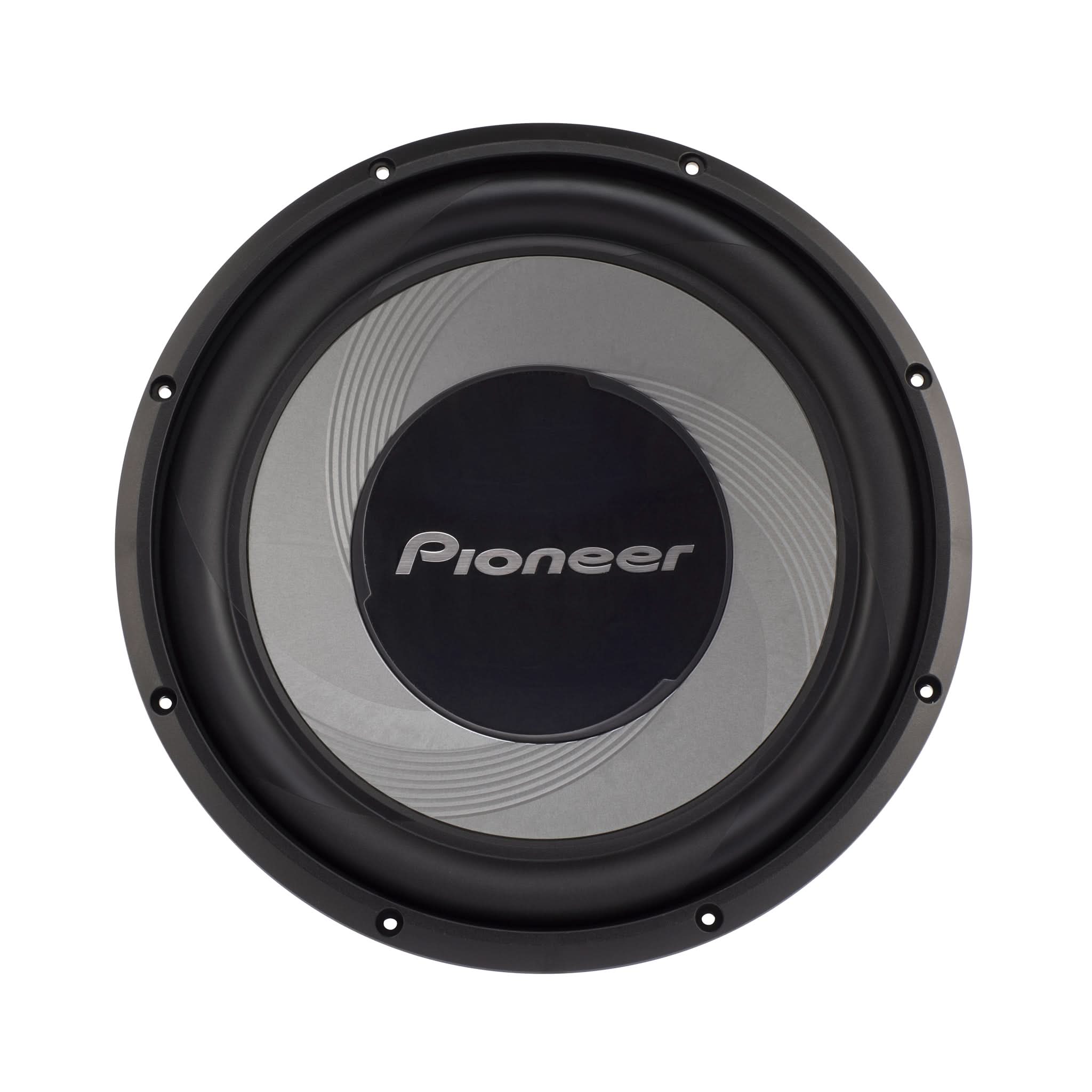

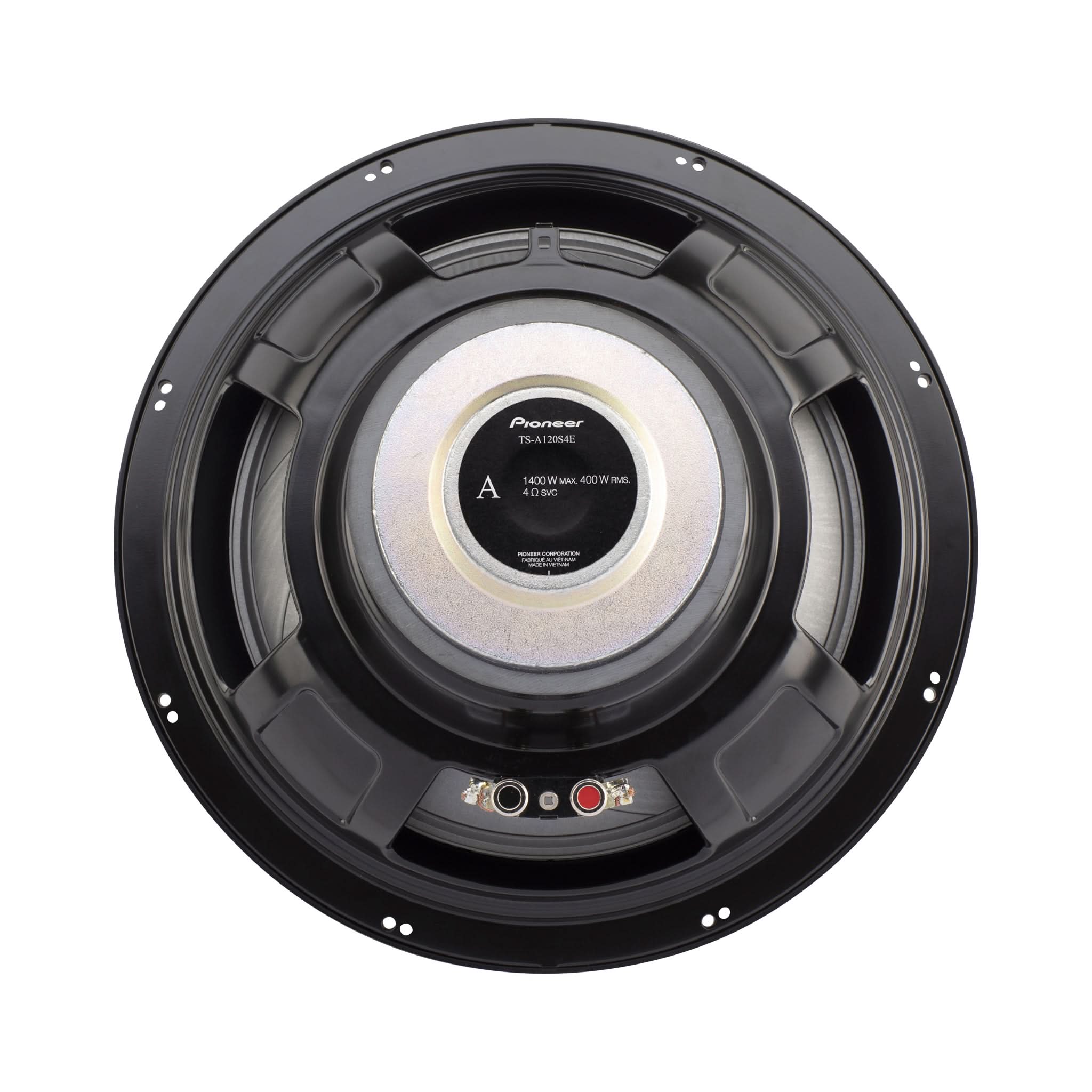

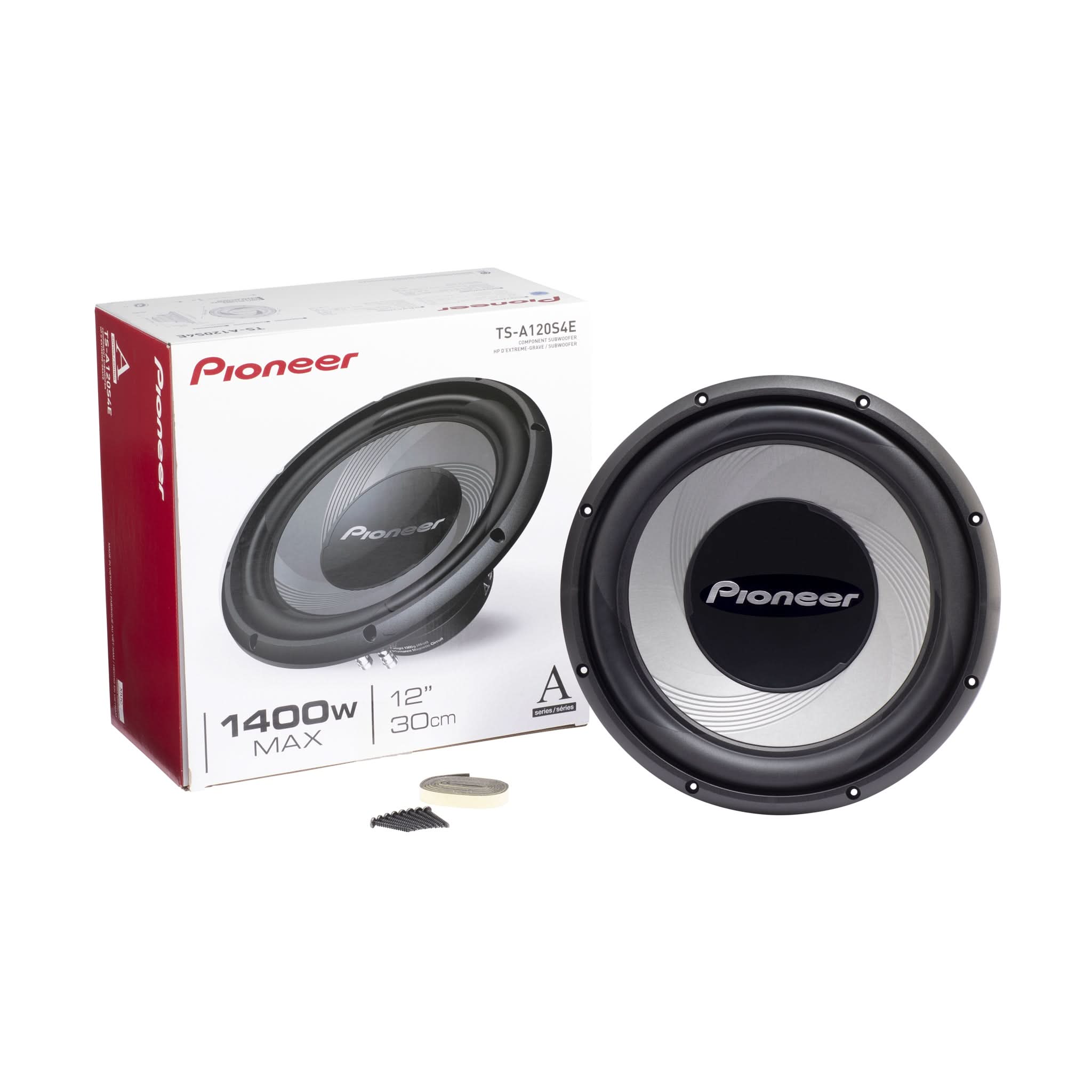

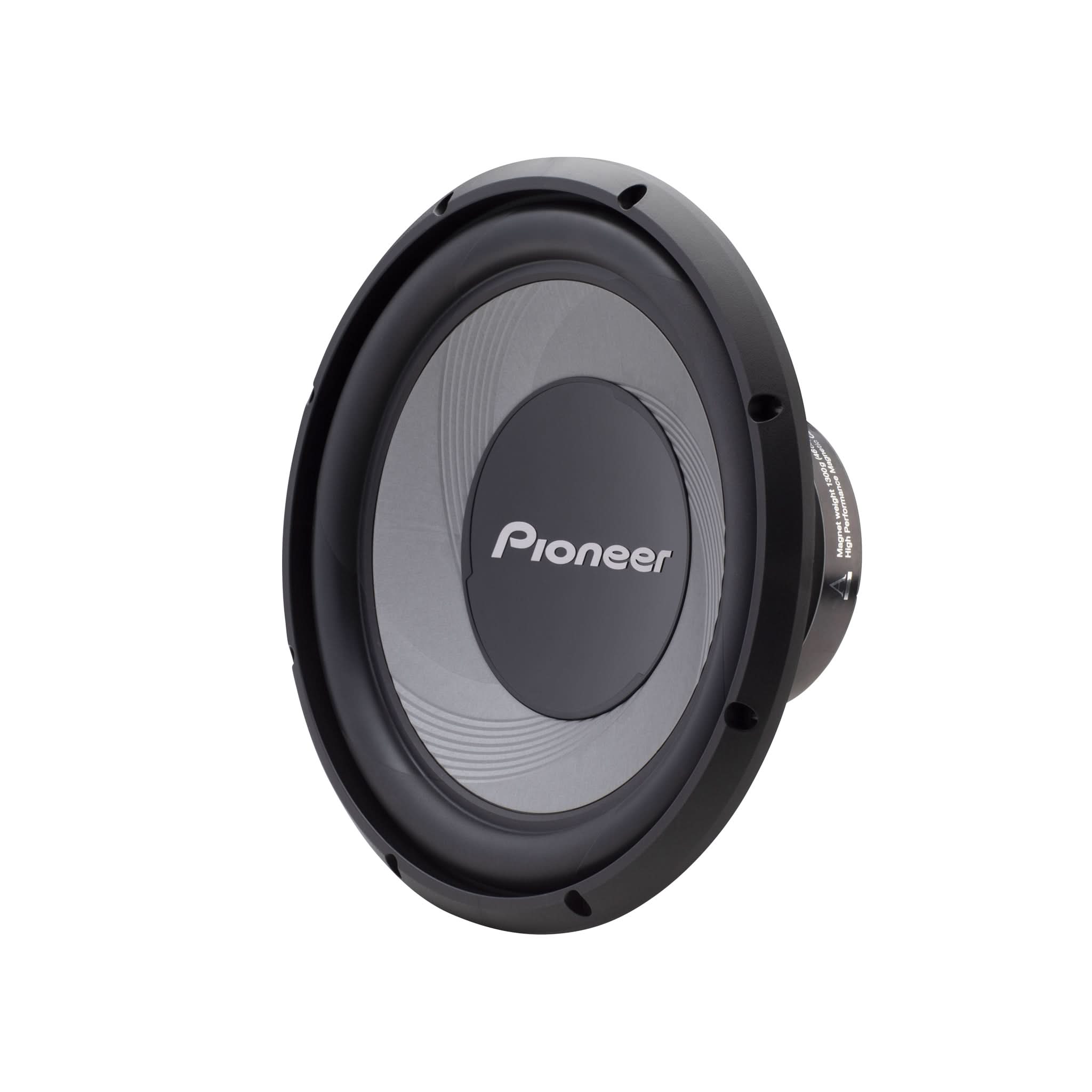

12″ – 1400 W Max Power. Single 4 Ohm Voice Coil. IMPP™ cone. Rubber Surround – Component Subwoofer
Features
1400 W Max Power (400 W Nominal)
Single 4 Ohm Voice Coil
12″ Injection Molded Polypropylene (IMPP) Cone Construction
Butyl Rubber Surround
- TS-W3020PRO
This product fits your selected vehicle
12″ – 3500 W Max Power. Optimally Blended Pulp woofer Cone – PRO Series subwoofer … $260.00 Add to Compare
- TS-WX010A
This product fits your selected vehicle
Compact Amplified Subwoofer with a built-in 160 W (Max.) amplifier for passenger s… $200.00 Add to Compare
- TS-WX140DA
This product fits your selected vehicle
Compact Amplified Subwoofer with a built-in 170 W (Max.) amplifier for under-seat … $280.00 Add to Compare
- TS-WX1010A
This product fits your selected vehicle
10″ – 1100 W pre-loaded subwoofer. sealed box design and built-in 300 Class-D W am… $330.00 Add to Compare
- TS-A120D4
This product fits your selected vehicle
12″ – 1500 W Max Power. Dual 4 Ohm Voice Coil. IMPP™ cone. Rubber Surround – Compo… $70.00 Add to Compare
- TS-WX106B
This product fits your selected vehicle
10″ – 1100 W Max Power. Single 4-ohm Voice Coil. IMPP™ cone – Pre-loaded Subwoofer $110.00 Add to Compare
- TS-A2000LD2
This product fits your selected vehicle
8″ – 700 W Max power. Glass-fiber & Mica reinforced IMPP™ Cone. Dual 2 Ohm Voice C… $160.00 Add to Compare
- TS-A25S4
This product fits your selected vehicle
10″ – 1200 W Max Power. Single 4 Ohm Voice Coil. IMPP™ cone – Component Subwoofer $80.00 Add to Compare
- TS-WX1210A
This product fits your selected vehicle
12″ – 1300 W pre-loaded subwoofer. sealed box design and built-in 350 Class-D W am… $370.00 Add to Compare
- TS-A301D4
This product fits your selected vehicle
12″ – 1600 W Max Power. Dual 4 Ohm Voice Coil. 2-piece Honeycomb IMPP™ Cone Struct… $140.00 Add to Compare
TS-A120S4E
Regular price $50.00 Add to Cart #shopify-section-template–27174808256881__main-product .yv-product-slider-wrapper {padding-top: 35px;} #shopify-section-template–27174808256881__main-product .yv-checkout-btn .add_to_cart.button {border-radius: 40px;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-disabled {display: none !important;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled {display: block; margin-top: -10px; text-align: left;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span {display: inline-block; border-bottom: 1px solid #181818; line-height: 1.4; cursor: pointer; transition: 0.2s all;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span:hover. #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span:focus {border-bottom: 1px solid transparent;}
| Continuous Power handling (RMS) – Watts 400 | Frequency Response 22 Hz to 1.6 kHz |
| Maximum Peak Power Handling – Watts 1400 | Nominal Impedance – Ohm 4-Ohm |
| Sensitivity (1W/1m) 87 dB | System-Type Component |
| CarSoundFit Yes | Cut Out dimensions 11-1/8″. 28 cm |
| Equivalent Compliance (VAS) 56.1 Liters. 2 Cu. Ft. | Free Air ResoNAnce (Fs) 32.1 |
| Linear Excursion (Xmax) 8.25 mm. 0.33″ | Mounting Depth 5-3/8″. 13.65cm |
| Port Diameter 3″. 8 cm | Port Length 6-1/2″. 17 cm |
| Recommended Ported Box Internal volume 42.5 Liters. 1.5 Cu. Ft | Recommended Sealed Enclosure Volume 35.4 Liters. 1.25 Cu Ft |
| Total Speaker Q (Qts) 0.7 | Woofer Dimensions 12″ |
| Basket Material Stamped Metal | Center Cap Material ABS |
| Cone Material IMPP – Composite | Damper Poly cotton/Aramid Fiber |
| Installation Ring ABS | Magnet Material Ferrite |

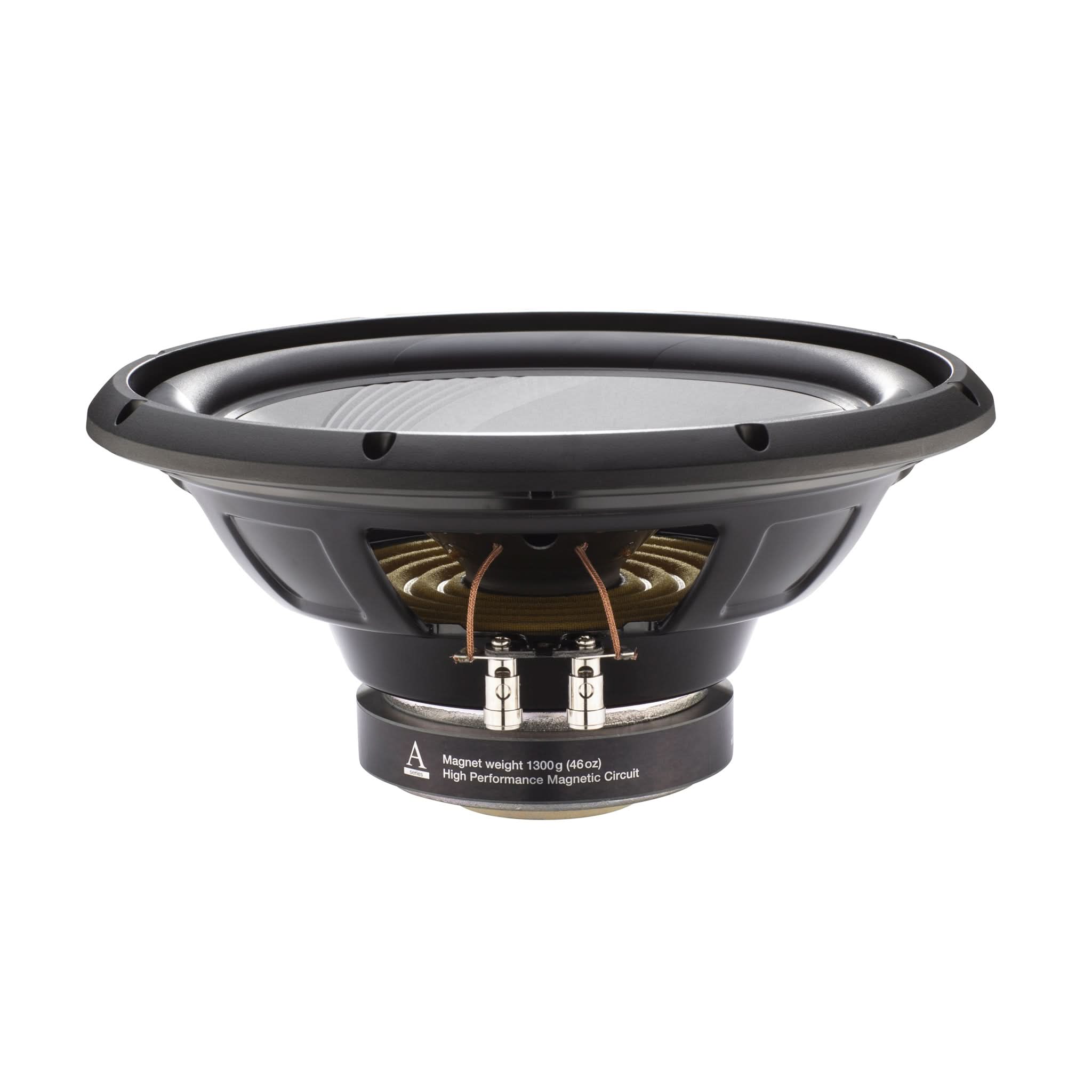

| Magnet Weight 46 oz | Surround Material Rubber |
| Surround Type Rolled | Voice Coil Bobbin Aluminum |
| Voice Coil Special Feature VCCS | Voice Coil Type Single Voice Coil 4-ohm |
| Voice Coil wire Copper | Wire Terminals Push Type |
