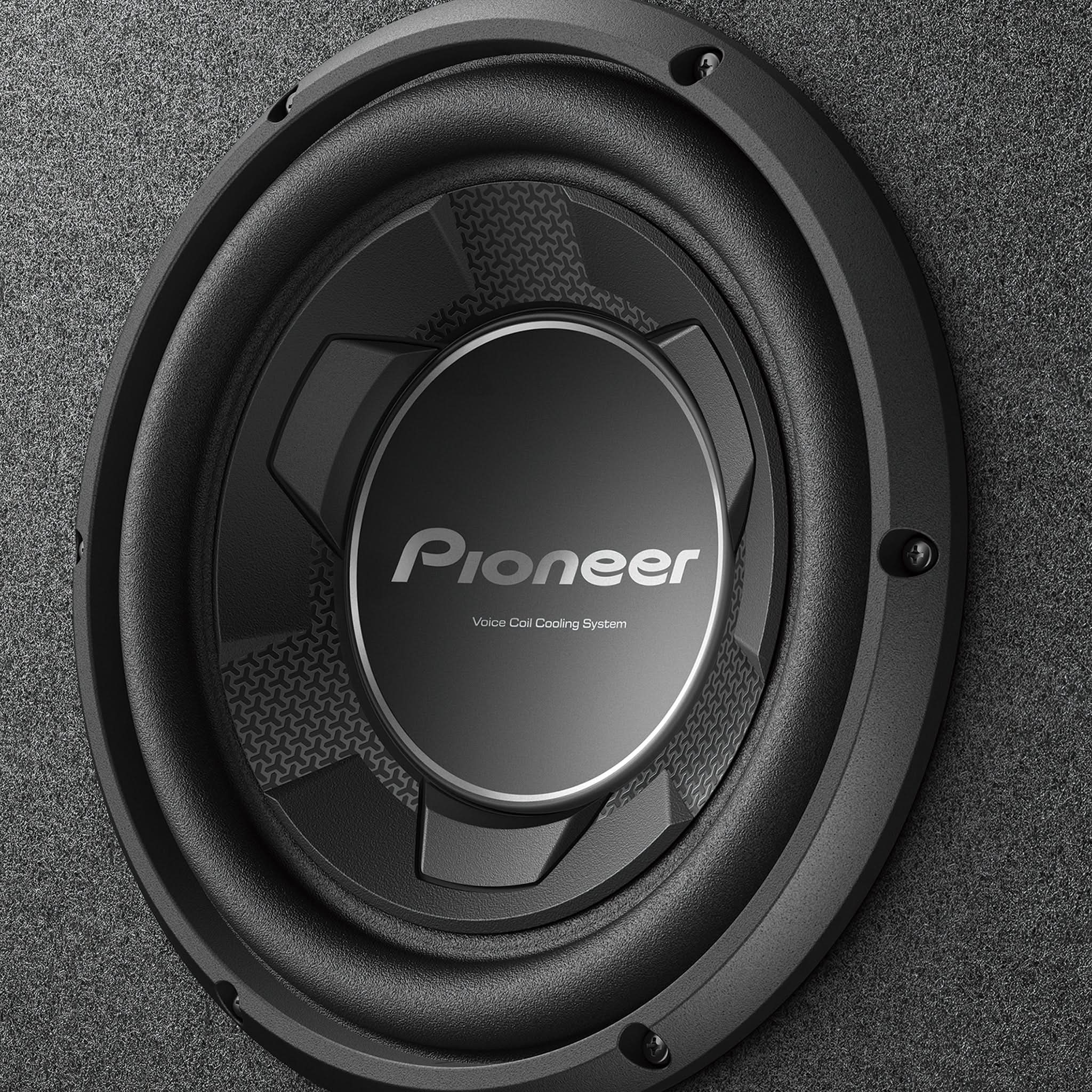

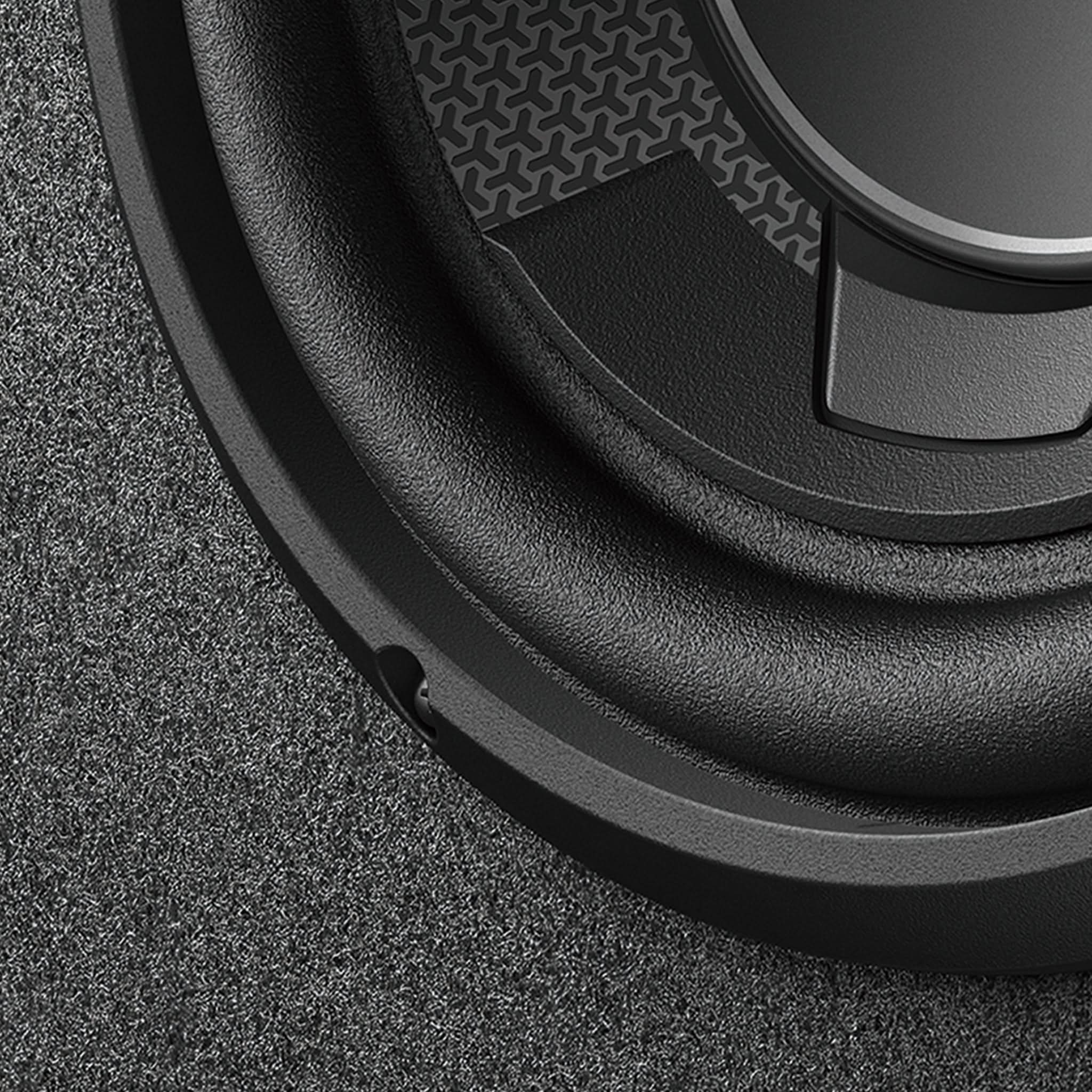

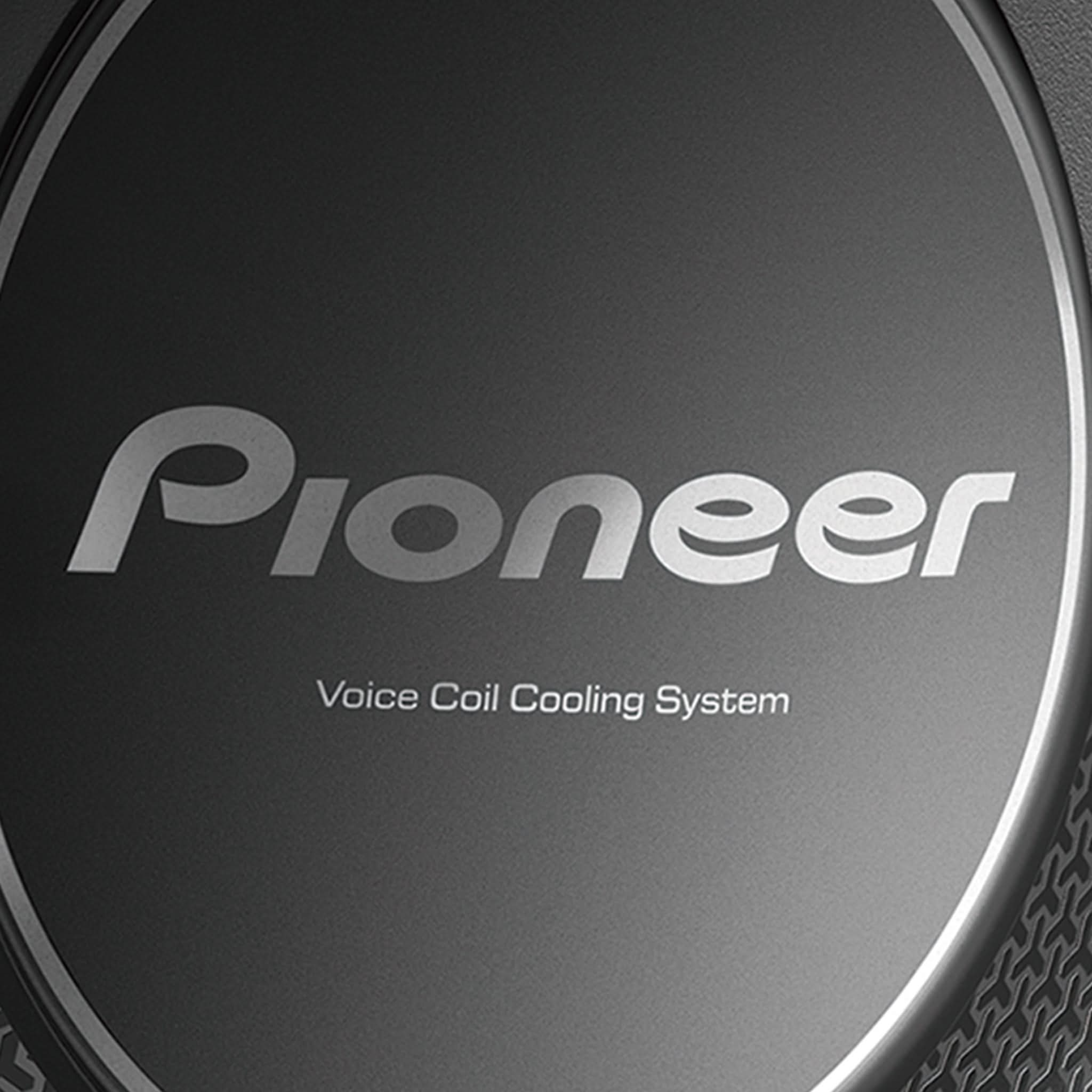

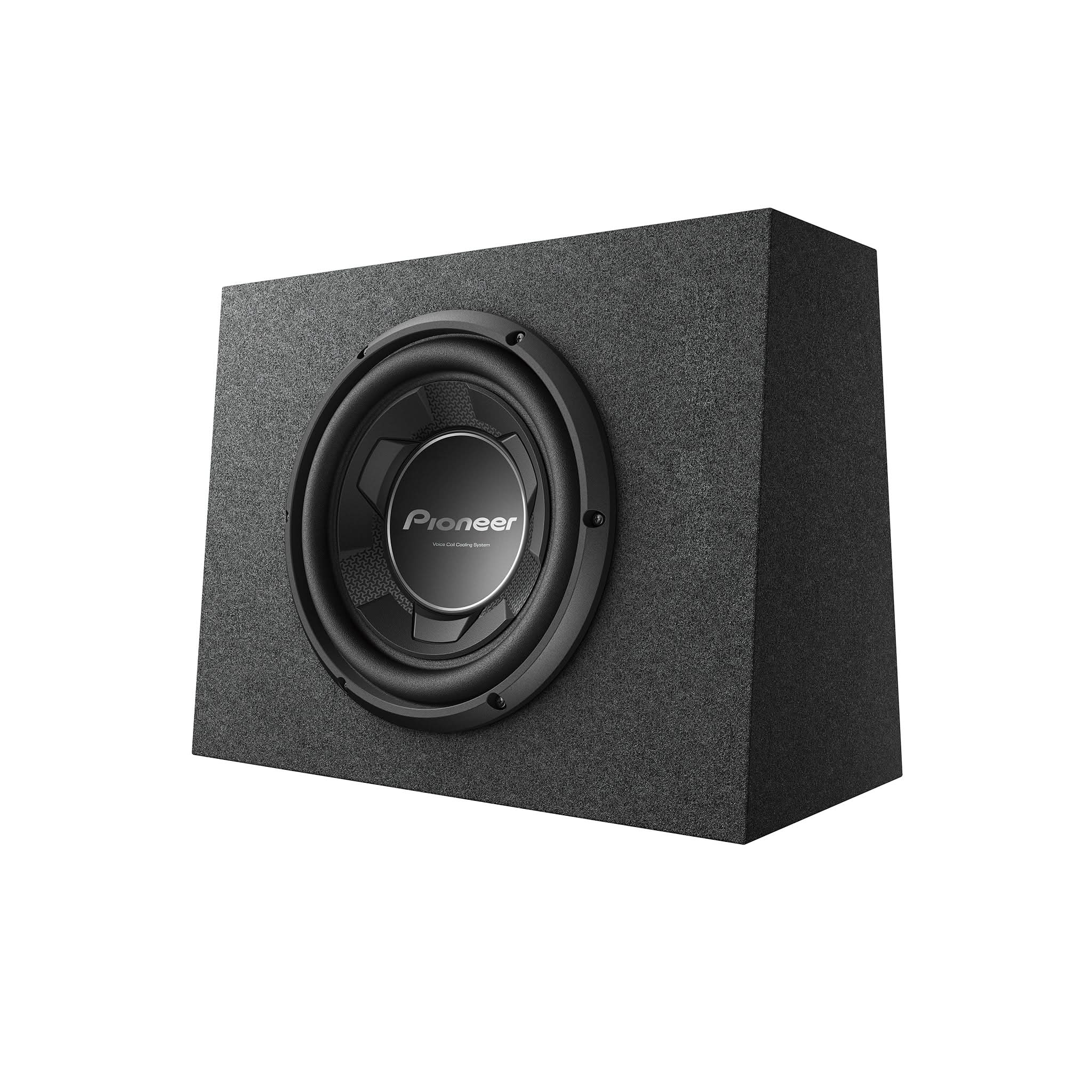

Pioneer TS-WX106B

10″ – 1100 W Max Power. Single 4-ohm Voice Coil. IMPP™ cone – Pre-loaded Subwoofer

Features

1100 Watts Max. Power / 250 Watts Nominal Power

10″ IMPP™ Composite Cone

Pioneer VCCS (Voice-Coil Cooling System)

Frequency range: 20 Hz to 3.7 kHz

Speaker Impedance: 4 ohms

Speaker Efficiency: 73 dB (1W/1M)

Box dimensions (WxHxD) : 17.625″ (448mm) x 13.5″ (343mm) x 9.25″ (235mm)

Trapezoidal shape to match rear seat angle

• TS-W3020PRO

  This product fits your selected vehicle

  12″ – 3500 W Max Power. Optimally Blended Pulp woofer Cone – PRO Series subwoofer … $260.00 Add to Compare

• TS-WX010A

  This product fits your selected vehicle

  Compact Amplified Subwoofer with a built-in 160 W (Max.) amplifier for passenger s… $200.00 Add to Compare

• TS-WX140DA

  This product fits your selected vehicle

  Compact Amplified Subwoofer with a built-in 170 W (Max.) amplifier for under-seat … $280.00 Add to Compare

• TS-WX1010A

  This product fits your selected vehicle

  10″ – 1100 W pre-loaded subwoofer. sealed box design and built-in 300 Class-D W am… $330.00 Add to Compare

• TS-A120D4

  This product fits your selected vehicle

  12″ – 1500 W Max Power. Dual 4 Ohm Voice Coil. IMPP™ cone. Rubber Surround – Compo… $70.00 Add to Compare

• TS-A2000LD2

  This product fits your selected vehicle

  8″ – 700 W Max power. Glass-fiber & Mica reinforced IMPP™ Cone. Dual 2 Ohm Voice C… $160.00 Add to Compare

• TS-A25S4

  This product fits your selected vehicle

  10″ – 1200 W Max Power. Single 4 Ohm Voice Coil. IMPP™ cone – Component Subwoofer $80.00 Add to Compare

• TS-WX1210A

  This product fits your selected vehicle

  12″ – 1300 W pre-loaded subwoofer. sealed box design and built-in 350 Class-D W am… $370.00 Add to Compare

• TS-A120S4E

  This product fits your selected vehicle

  12″ – 1400 W Max Power. Single 4 Ohm Voice Coil. IMPP™ cone. Rubber Surround – Com… $50.00 Add to Compare

• TS-A301D4

  This product fits your selected vehicle

  12″ – 1600 W Max Power. Dual 4 Ohm Voice Coil. 2-piece Honeycomb IMPP™ Cone Struct… $140.00 Add to Compare

TS-WX106B

Regular price $110.00 Add to Cart #shopify-section-template–27174808256881__main-product .yv-product-slider-wrapper {padding-top: 35px;} #shopify-section-template–27174808256881__main-product .yv-checkout-btn .add_to_cart.button {border-radius: 40px;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-disabled {display: none !important;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled {display: block; margin-top: -10px; text-align: left;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span {display: inline-block; border-bottom: 1px solid #181818; line-height: 1.4; cursor: pointer; transition: 0.2s all;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span:hover. #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span:focus {border-bottom: 1px solid transparent;}

PRODUCT PERFORMANCE

Continuous Power Handling (Rms) – Watts 250	Frequency Response 20 Hz to 3.7 kHz
Maximum Peak Power Handling – Watts 1100	Nominal Impedance – Ohm 4-Ohm
Sensitivity (1W/1M) 73dB	System-Type Pre-Loaded

FEATURES

Woofer Dimensions 10″

MATERIALS

Basket Material Stamped Metal	Cone Material IMPP – Composite
Damper Poly cotton	Installation Ring Polypropylene
Magnet Material Ferrite	Magnet Weight 29.1 oz
Surround Material Urethane	Surround Type Rolled
Voice Coil Bobbin Aluminum	Voice Coil Special Feature VCCS
Voice Coil wire Copper
