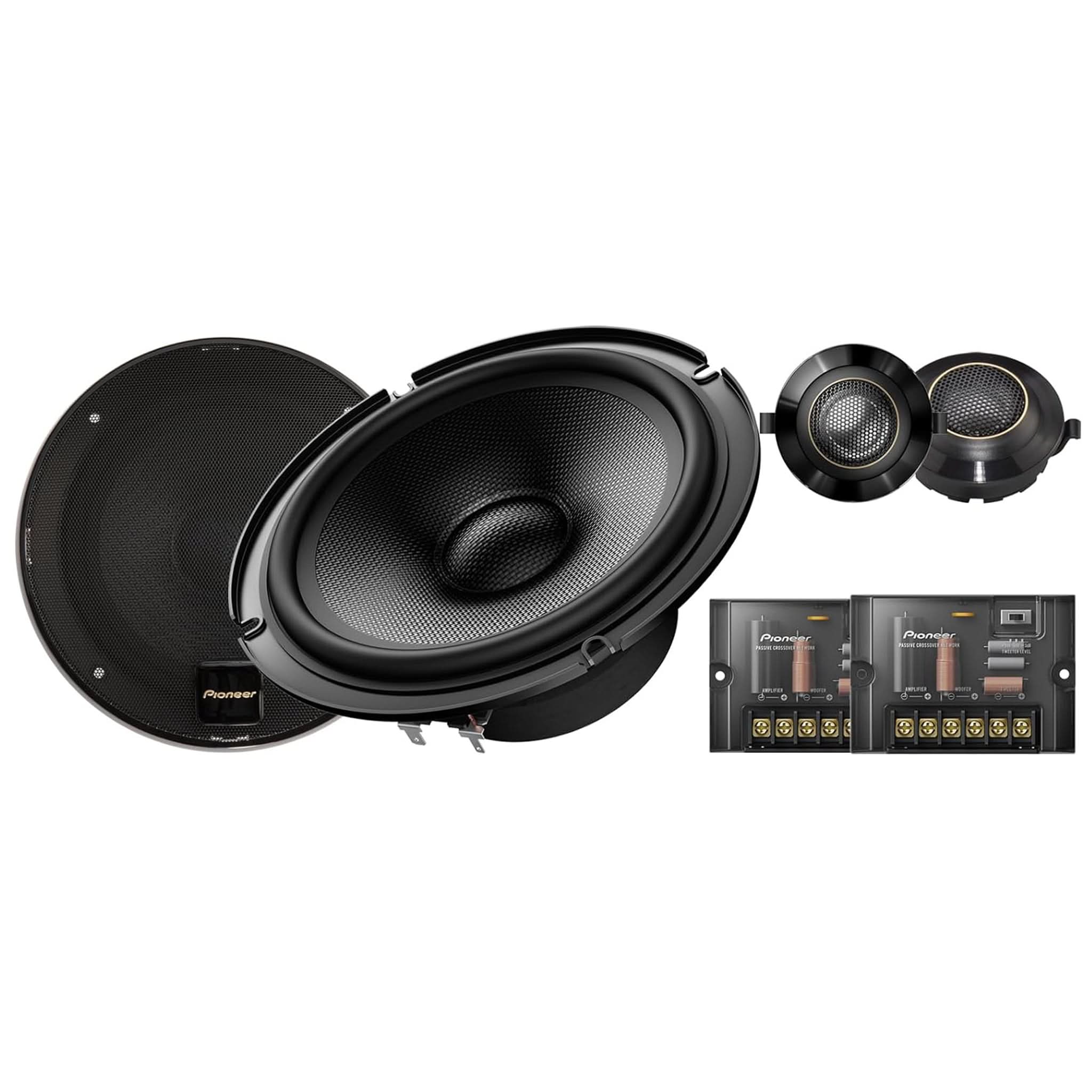

6.5″ 2-way. 330 W Max Power. Twaron® Aramid + Cellulose Fiber Dual-Layer Cone. 29mm HSDOM Aluminum Alloy Dome Tweeter-Swivel Design. Hi-Res Audio Certified – Component Speakers (pair)
Features
330 Watts Maximum Power
110 Watts Nominal Power
6.5″ Twaron® Aramid + Cellulose Fiber Dual-Layer Cone
29mm HSDOM Aluminum Alloy Dome Tweeter
Frequency range: 30 Hz to 96 kHz
Speaker Impedance: 4 ohms
Speaker Efficiency: 85 (1W/1M)
Swivel Tweeter Mounting Kit
- TS-6900PRO
This product fits your selected vehicle
6″ x 9″ – 2-way 600 W Max Power. Blended Pulp woofer Cone and 2.875″ (73 mm) Bulle… $130.00 Add to Compare
- TS-M651PRO
This product fits your selected vehicle
6.5″ – 500 W Max Power. Optimally Blended Pulp woofer Cone – PRO Series Midrange/W… $120.00 Add to Compare
- TS-B401PRO
This product fits your selected vehicle
4″ – 600 W Max Power. Field-serviceable Titanium Diaphragm. Aluminum Die-Cast Chas… $70.00 Add to Compare
- TS-A1681F
This product fits your selected vehicle
6.5″ – 4-way. 350 W Max Power. Carbon/Mica-reinforced IMPP™ cone. 1.63″ (42mm) Con… $110.00 Add to Compare
- TS-B351PRO
This product fits your selected vehicle
3.5″ – 300 W Max Power. Field-serviceable Titanium Diaphragm. Aluminum Die-Cast Ch… $60.00 Add to Compare
- TS-A879
This product fits your selected vehicle
3.5″ – 2-way. 450 W Max Power. Carbon/Mica-reinforced IMPP™ cone. 21mm PEI hard do… $70.00 Add to Compare
- TS-M801PRO
This product fits your selected vehicle
8.0″ – 700 W Max Power. Optimally Blended Pulp woofer Cone – PRO Series Midrange/W… $150.00 Add to Compare
- TS-A6991FH
This product fits your selected vehicle
6 x 9″ – 5-way. 750 W Max Power. Carbon/Mica-reinforced IMPP™ cone. 2.25″ (57mm) … $160.00 Add to Compare
- TS-A301TW
This product fits your selected vehicle
0.75″ – 450 W Max Power. PEI Hard Dome. in-line filter and multi-fit adapters incl… $55.00 Add to Compare
- TS-G650
This product fits your selected vehicle
6.5″ – 2-way. 300 W Max Power. IMPP™ cone. 30mm Tweeter – Coaxial Speakers (pair) $60.00 Add to Compare
TS-Z65CH
Sale price $255.00 Regular price $300.00
Strike-Through Pricing and Savings
×
USA.Pioneer may display strikethrough pricing alongside a reduced advertised price in instances where an item is subject to a Sale. Instant Savings. Special Purchase. or Price Break. The strikethrough price shown represents the price advertised for this model on or in connection with Pioneer’s website as of 5/04/2026.
Add to Cart #shopify-section-template–24289673707889__main-product .yv-product-slider-wrapper {padding-top: 35px;} #shopify-section-template–24289673707889__main-product .yv-checkout-btn .add_to_cart.button {border-radius: 40px;} #shopify-section-template–24289673707889__main-product .ps-widget.ps-disabled {display: none !important;} #shopify-section-template–24289673707889__main-product .ps-widget.ps-enabled {display: block; margin-top: -10px; text-align: left;} #shopify-section-template–24289673707889__main-product .ps-widget.ps-enabled span {display: inline-block; border-bottom: 1px solid #181818; line-height: 1.4; cursor: pointer; transition: 0.2s all;} #shopify-section-template–24289673707889__main-product .ps-widget.ps-enabled span:hover. #shopify-section-template–24289673707889__main-product .ps-widget.ps-enabled span:focus {border-bottom: 1px solid transparent;}
| Continuous Power Handling (Rms) – Watts 110 | Crossover Frequency 4500 Hz (Acoustic). 1900 Hz (Electric) |
| Frequency Response 30 Hz to 96 kHz | Hi-Res Certified Yes |
| Maximum Peak Power Handling – Watts 330 | Nominal Impedance – Ohm 4-Ohm |
| Sensitivity (1W/1M) 85 dB (± 1.5dB) | System-Type Component 2-way. Balanced Dome – Tweeter |
| CarSoundFit Yes | Cut Out dimensions 5-5/8″ |
| Mounting Depth 2-1/2″ – Midrange. 5/8″ – Tweeter | Outer Diameter 2-3/8″ |
| Protrusion 1/2″ | Tweeter Dimensions 1.14″ |
| Tweeter Mounting Hole Diameter 2″ | Tweeter – Swivel Type Yes |
| Woofer Dimensions 6.5″ |
| Basket Material Stamped Steel | Center Cap Material Twaron Aramid Fiber |
| Cone Material Twaron Aramid Fiber. Cellulose Fiber Dual Layer | Damper Aramid Fiber |
| Diaphragm Material Aluminum Alloy – Tweeter | Magnet Material Ferrite – Speaker. Neodymium – Tweeter |
| Magnet Weight 15.2 oz – Speaker. 0.2 oz – Tweeter | Shorting Ring Material Copper |
| Surround Material Butyl Rubber | Surround Type Rolled |
| Voice Coil Material Glass Imide | Voice Coil wire Copper |
| Wire Terminals Lug Type |
