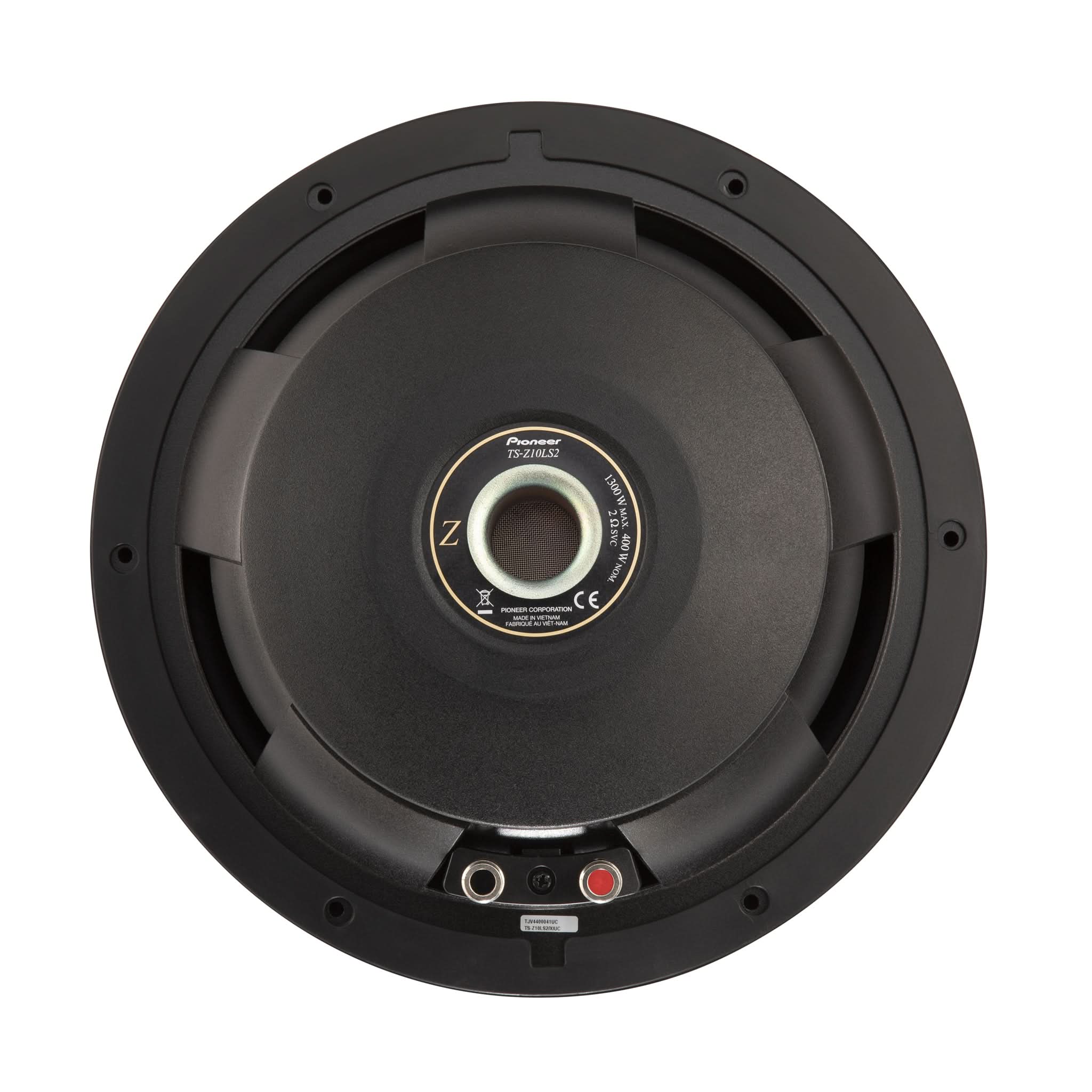

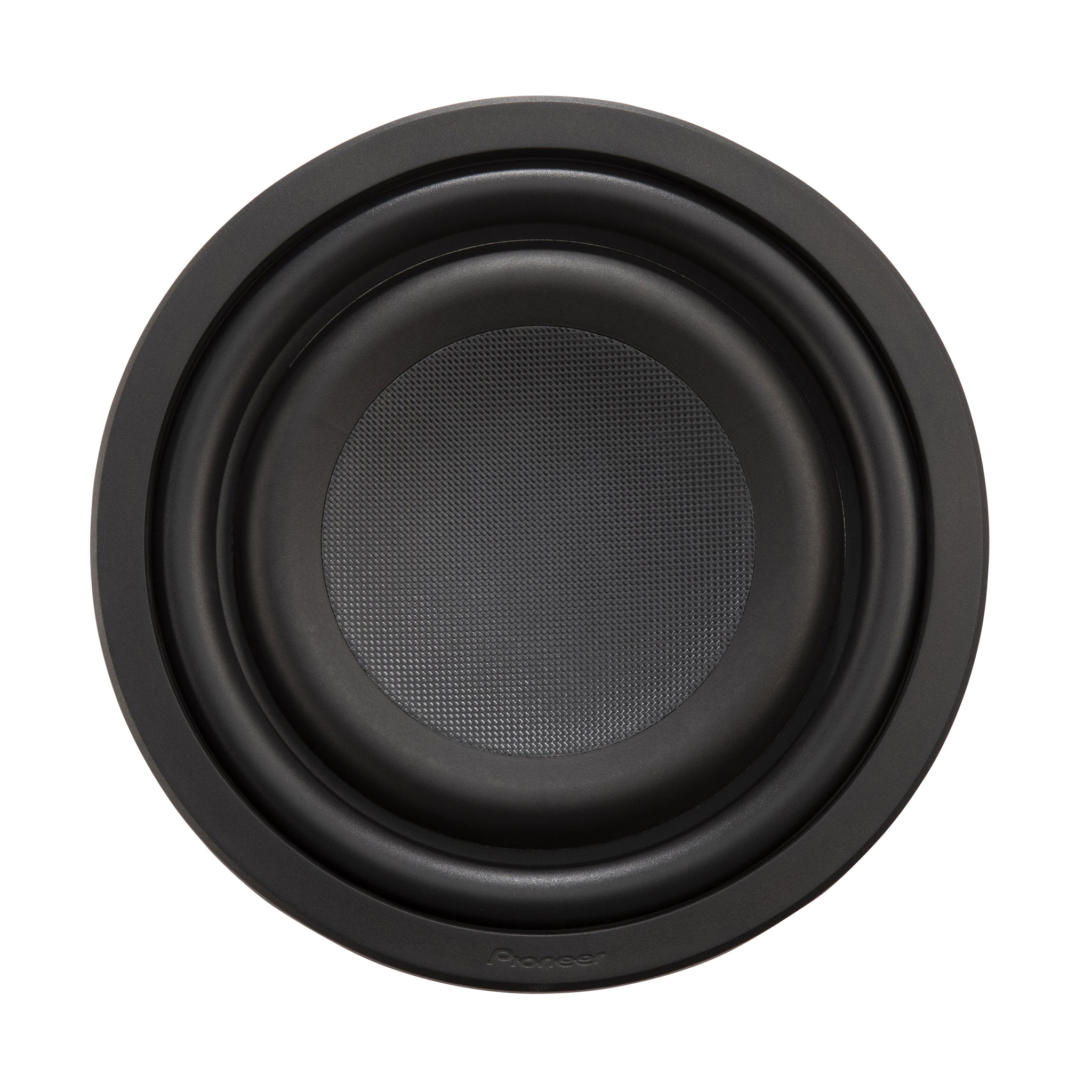

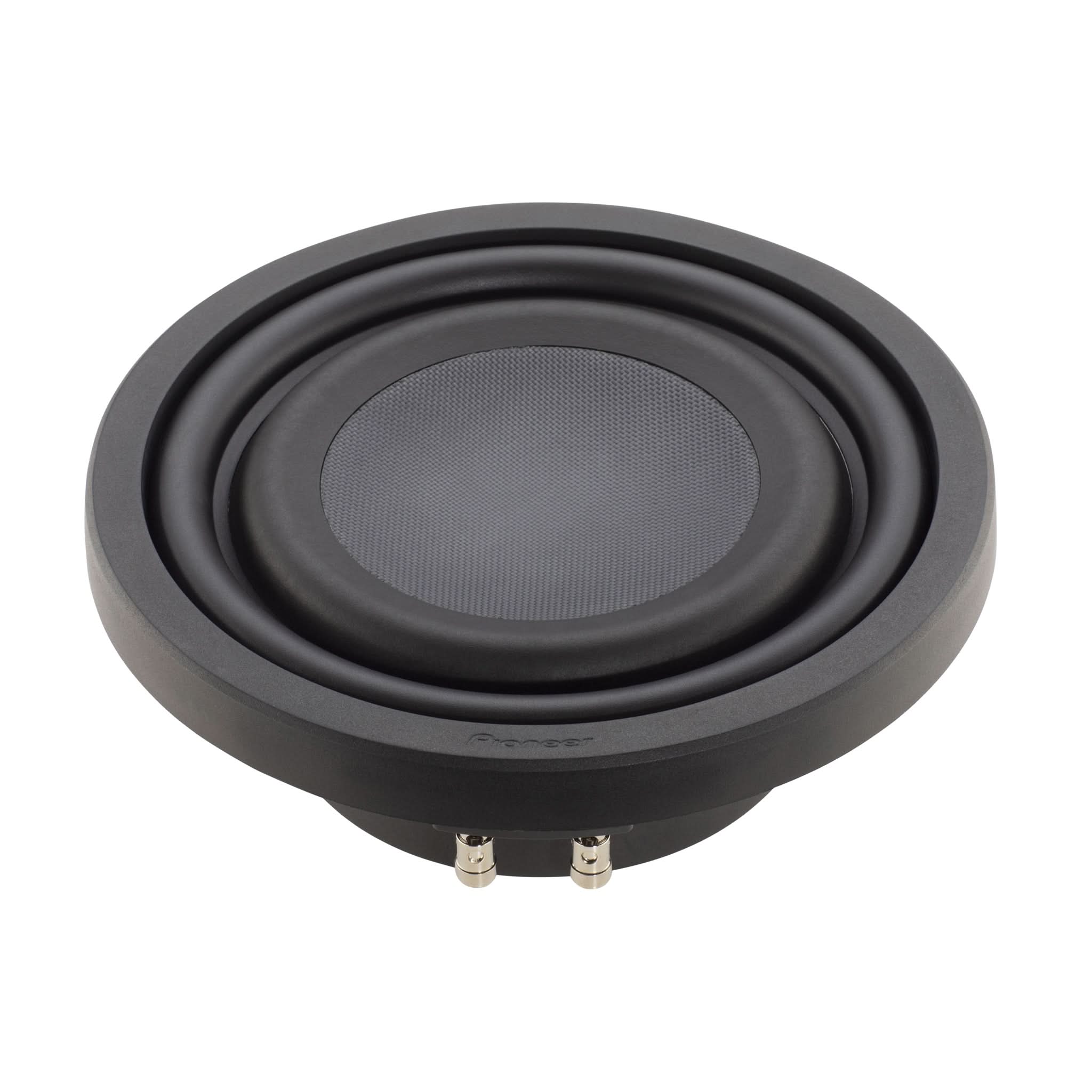

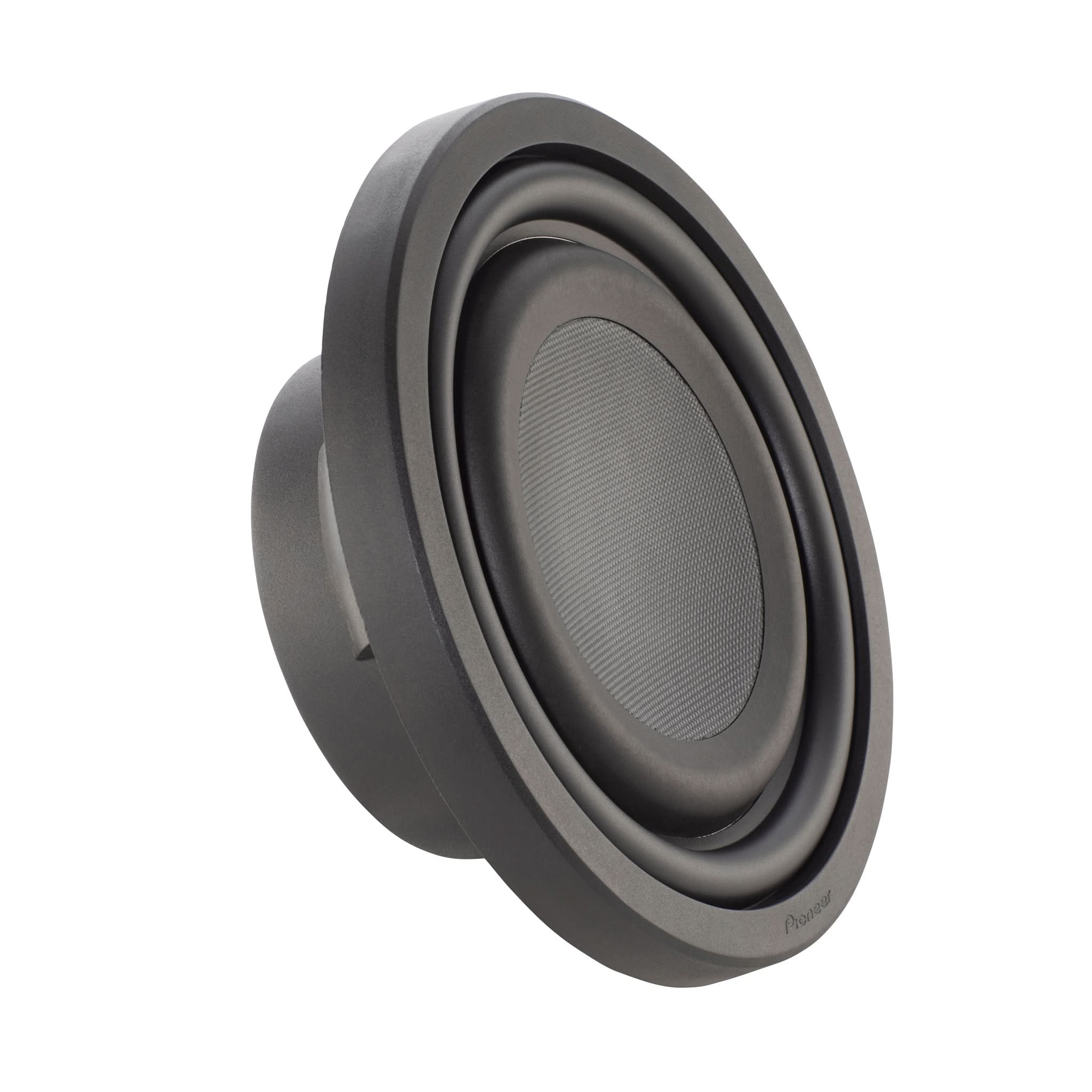

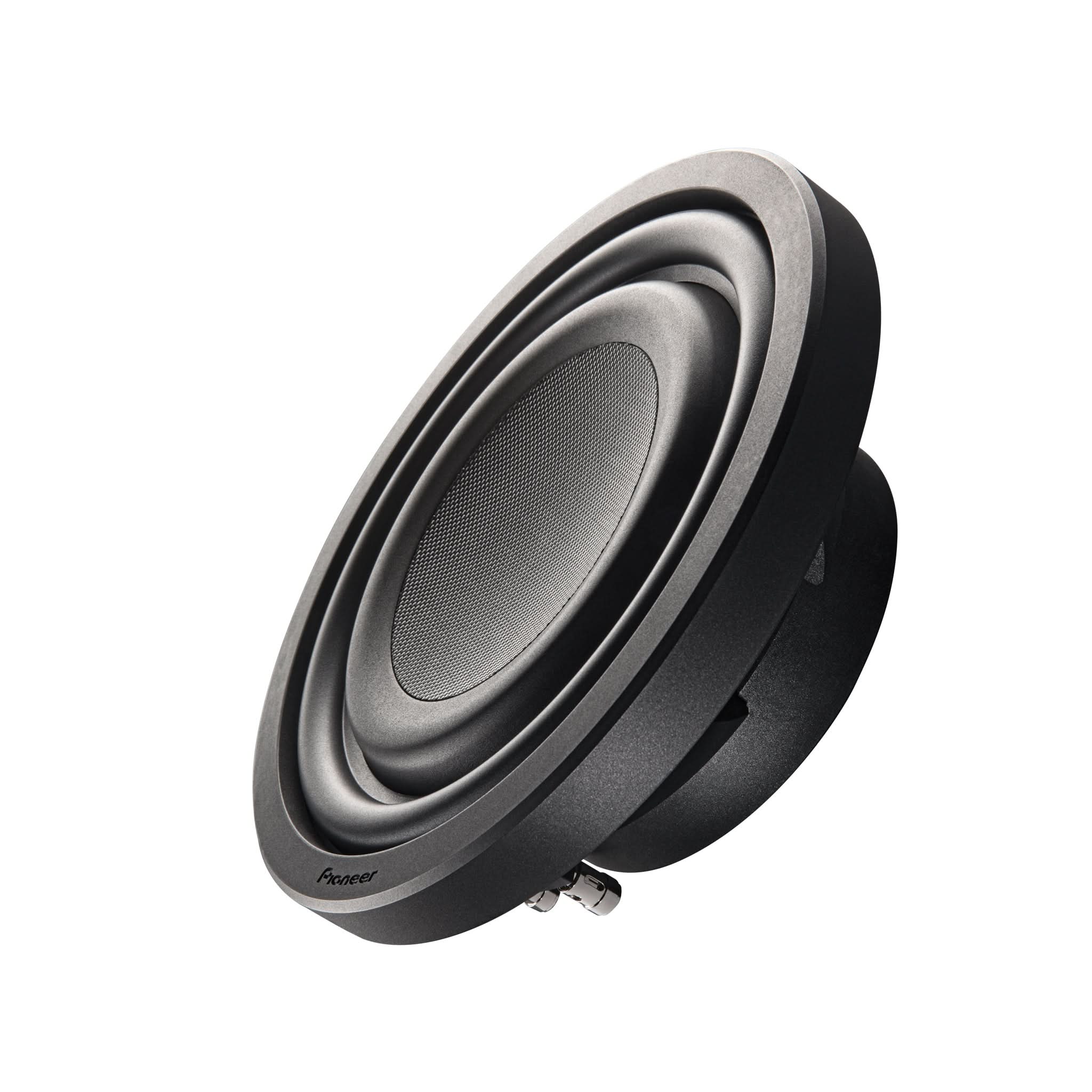

Pioneer TS-Z10LS2

10″ – 1300 W Max Power. Single 2 Ohm Voice Coil. Twaron Aramid Fiber + Cellulose Fiber Cone. Hi-Res Audio Certified Subwoofer optimized for small spaces

Features

1300 Watts Max. Power / 400 Watts Nominal Power

10″ Twaron® Aramid Fiber + Cellulose Fiber Dual Layer Cone

Butyl Rubber Surround & Dual Poly-Cotton spider

Frequency range: 20 Hz to 3.8 kHz

Speaker Impedance: 2 ohms

Speaker Efficiency: 74 dB (1W/1M)

Mounting depth: 3-1/4″

Recommended Box volume : 0.6cu.ft. (sealed)

• TS-W3020PRO

  This product fits your selected vehicle

  12″ – 3500 W Max Power. Optimally Blended Pulp woofer Cone – PRO Series subwoofer … $260.00 Add to Compare

• TS-WX010A

  This product fits your selected vehicle

  Compact Amplified Subwoofer with a built-in 160 W (Max.) amplifier for passenger s… $200.00 Add to Compare

• TS-WX140DA

  This product fits your selected vehicle

  Compact Amplified Subwoofer with a built-in 170 W (Max.) amplifier for under-seat … $280.00 Add to Compare

• TS-WX1010A

  This product fits your selected vehicle

  10″ – 1100 W pre-loaded subwoofer. sealed box design and built-in 300 Class-D W am… $330.00 Add to Compare

• TS-A120D4

  This product fits your selected vehicle

  12″ – 1500 W Max Power. Dual 4 Ohm Voice Coil. IMPP™ cone. Rubber Surround – Compo… $70.00 Add to Compare

• TS-WX106B

  This product fits your selected vehicle

  10″ – 1100 W Max Power. Single 4-ohm Voice Coil. IMPP™ cone – Pre-loaded Subwoofer $110.00 Add to Compare

• TS-A2000LD2

  This product fits your selected vehicle

  8″ – 700 W Max power. Glass-fiber & Mica reinforced IMPP™ Cone. Dual 2 Ohm Voice C… $160.00 Add to Compare

• TS-A25S4

  This product fits your selected vehicle

  10″ – 1200 W Max Power. Single 4 Ohm Voice Coil. IMPP™ cone – Component Subwoofer $80.00 Add to Compare

• TS-WX1210A

  This product fits your selected vehicle

  12″ – 1300 W pre-loaded subwoofer. sealed box design and built-in 350 Class-D W am… $370.00 Add to Compare

• TS-A120S4E

  This product fits your selected vehicle

  12″ – 1400 W Max Power. Single 4 Ohm Voice Coil. IMPP™ cone. Rubber Surround – Com… $50.00 Add to Compare

TS-Z10LS2

Sale price $213.00 Regular price $250.00

Strike-Through Pricing and Savings

×

USA.Pioneer may display strikethrough pricing alongside a reduced advertised price in instances where an item is subject to a Sale. Instant Savings. Special Purchase. or Price Break. The strikethrough price shown represents the price advertised for this model on or in connection with Pioneer’s website as of 5/04/2026.

Add to Cart #shopify-section-template–27174808256881__main-product .yv-product-slider-wrapper {padding-top: 35px;} #shopify-section-template–27174808256881__main-product .yv-checkout-btn .add_to_cart.button {border-radius: 40px;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-disabled {display: none !important;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled {display: block; margin-top: -10px; text-align: left;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span {display: inline-block; border-bottom: 1px solid #181818; line-height: 1.4; cursor: pointer; transition: 0.2s all;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span:hover. #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span:focus {border-bottom: 1px solid transparent;}

PRODUCT PERFORMANCE

Continuous Power handling (RMS) – Watts 400	Frequency Response 20 Hz to 3.8 kHz
Maximum Peak Power Handling – Watts 1300	Nominal Impedance – Ohm 2-Ohm
Sensitivity (1W/1m) 74dB	System-Type Component

FEATURES

CarSoundFit Yes	Cut Out dimensions 9-1/8″. 23.18 cm
Equivalent Compliance (VAS) 23.1 Liters. 0.81 Cu. Ft.	Free Air ResoNAnce (Fs) 34
Linear Excursion (Xmax) 9.4 mm. 3/8″	Mounting Depth 3-1/4″
Port Diameter 3″. 7.62 cm	Port Length 7-1/2″. 19.05 cm
Recommended Ported Box Internal volume 17 Liters. 0.60 Cu. FT.	Recommended Sealed Enclosure Volume 0.6 Cu Ft. 17 Liters
Total Speaker Q (Qts) 0.48	Woofer Dimensions 10″

MATERIALS

Basket Material Die Cast Aluminum	Cone Material IMPP – Composite
Damper Poly cotton	Drive Cone Material Twaron Aramid Fiber
Gasket Rubber	Installation Ring Polypropylene
Magnet Material Ferrite	Magnet Weight 68 oz
Surround Material Rubber	Surround Type Rolled
Voice Coil Bobbin Glass imide	Voice Coil Type Single Voice Coil
Voice Coil wire Copper	Wire Terminals Push Type
