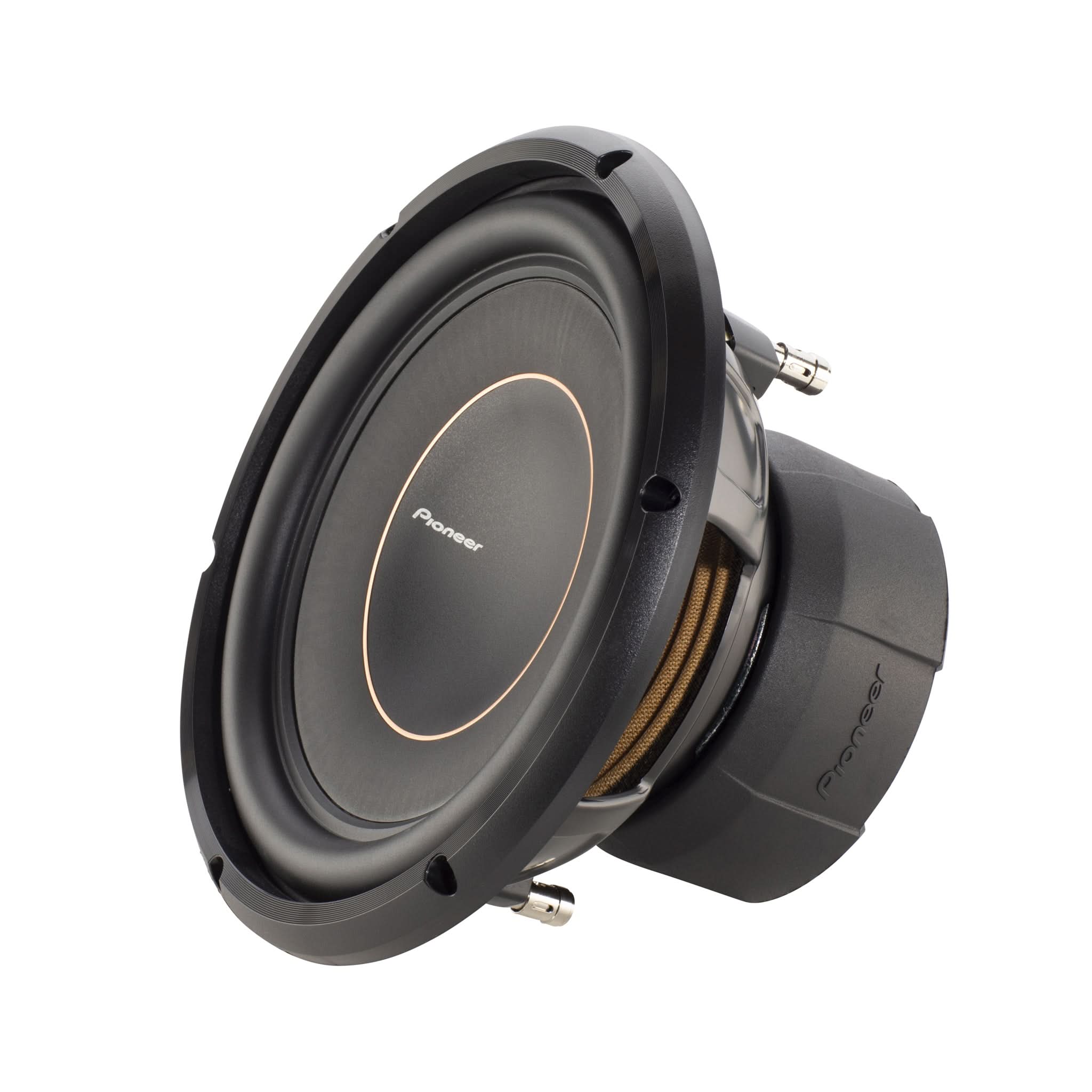

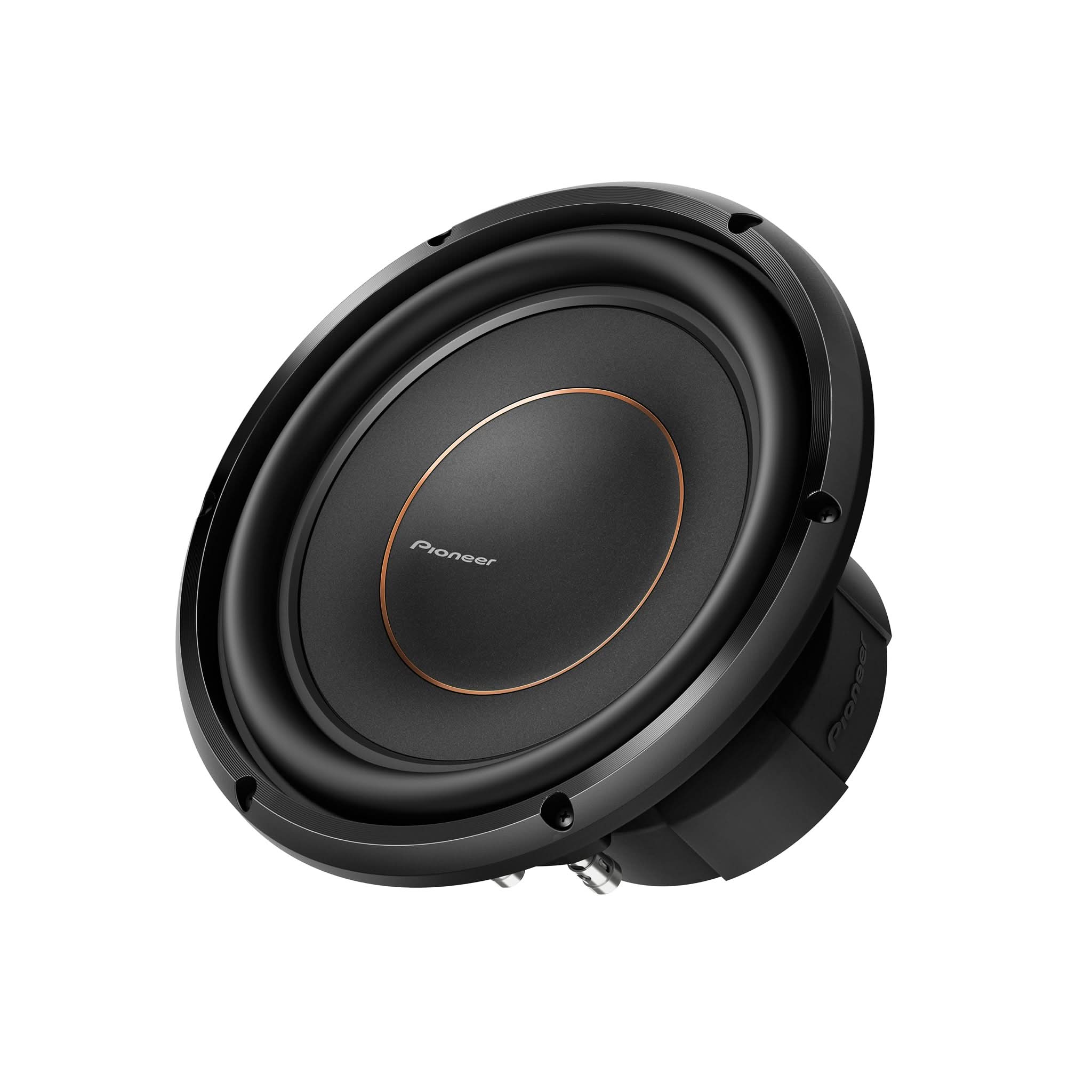

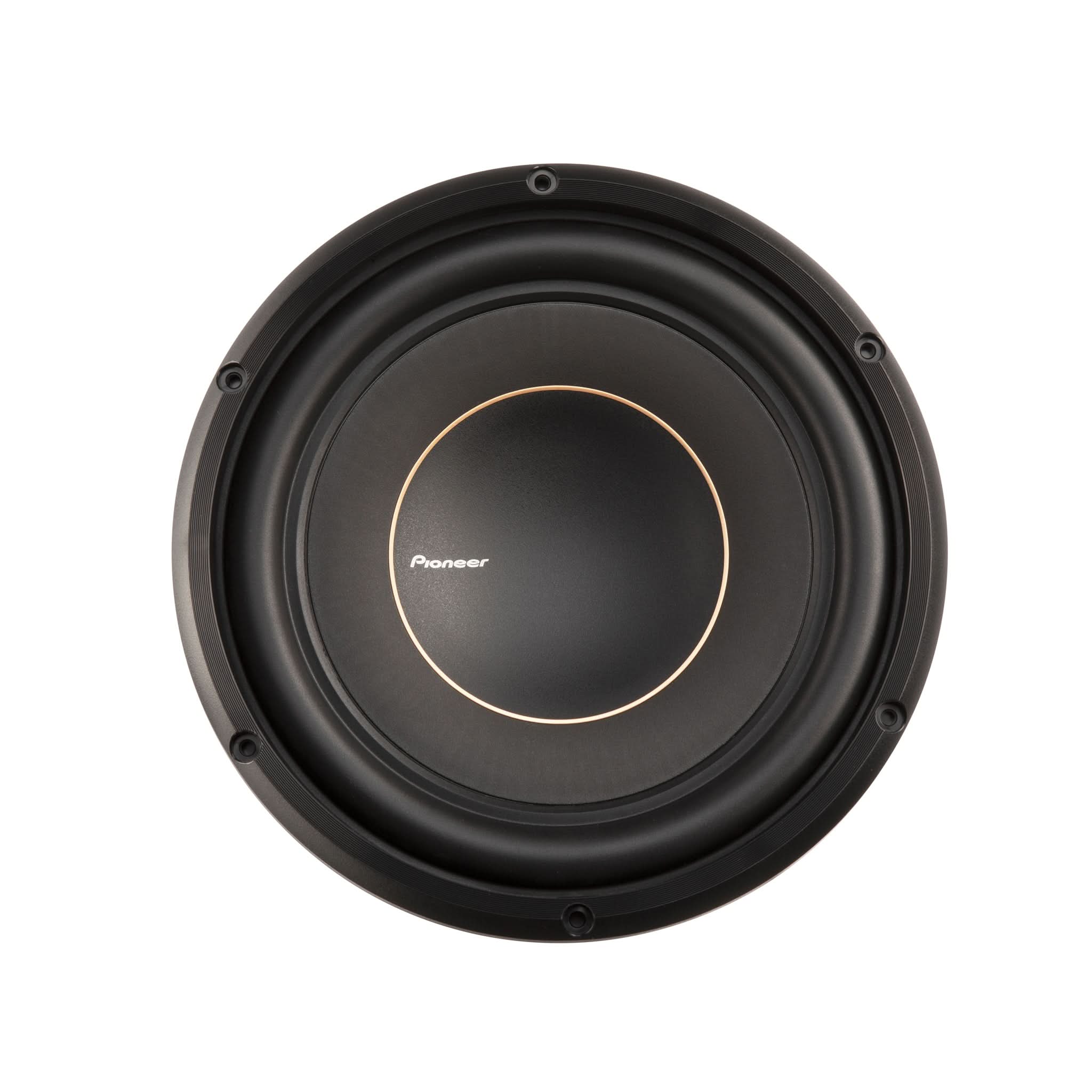

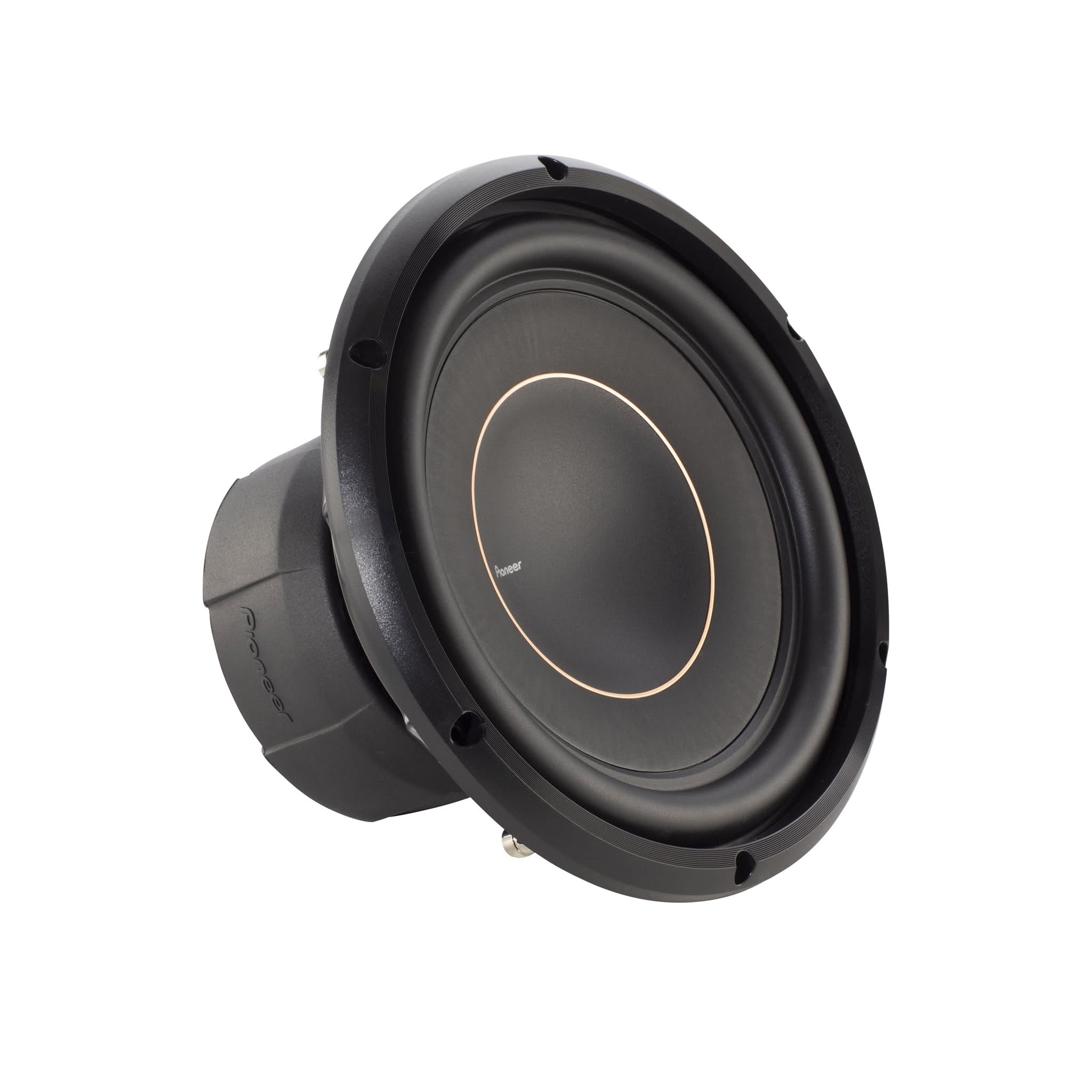

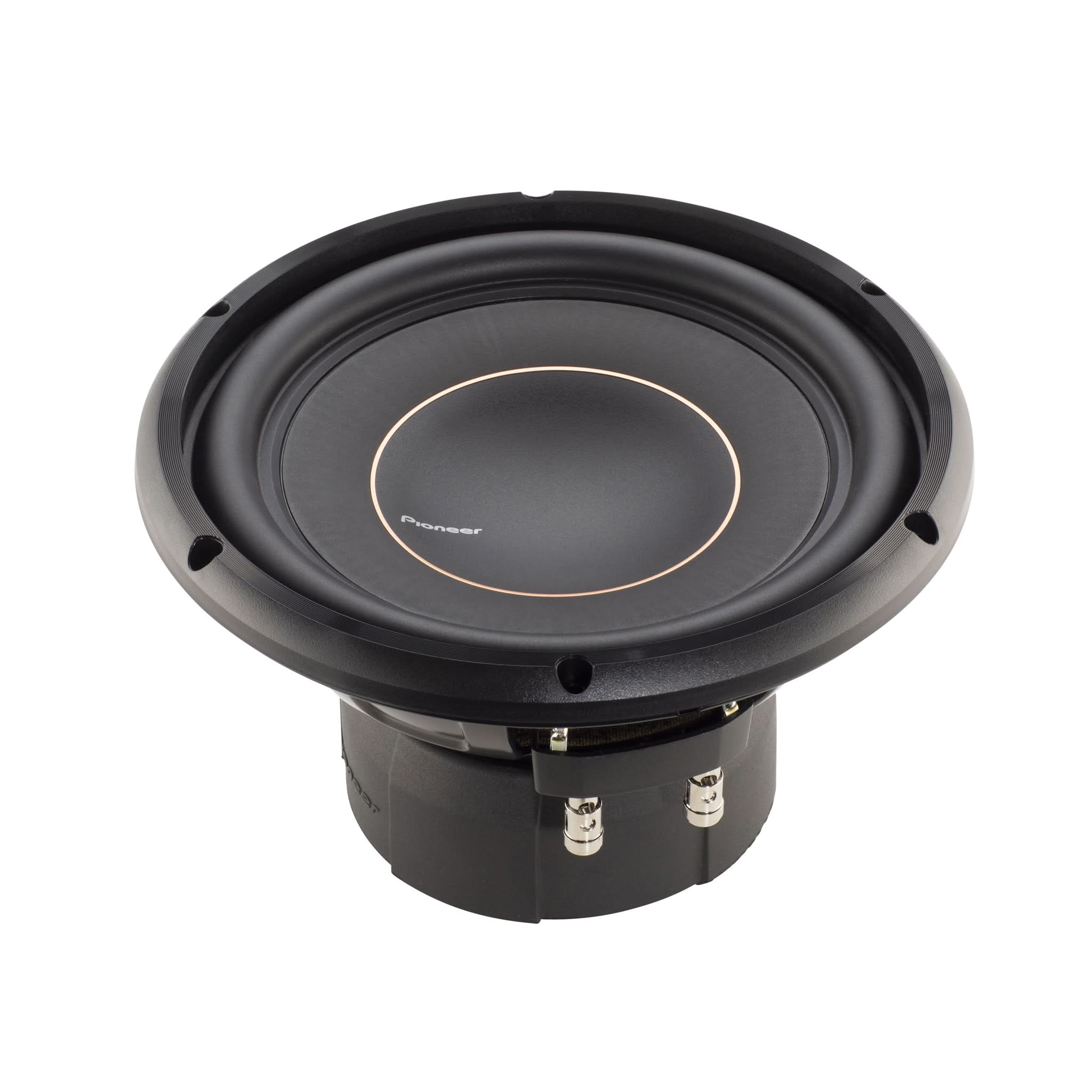

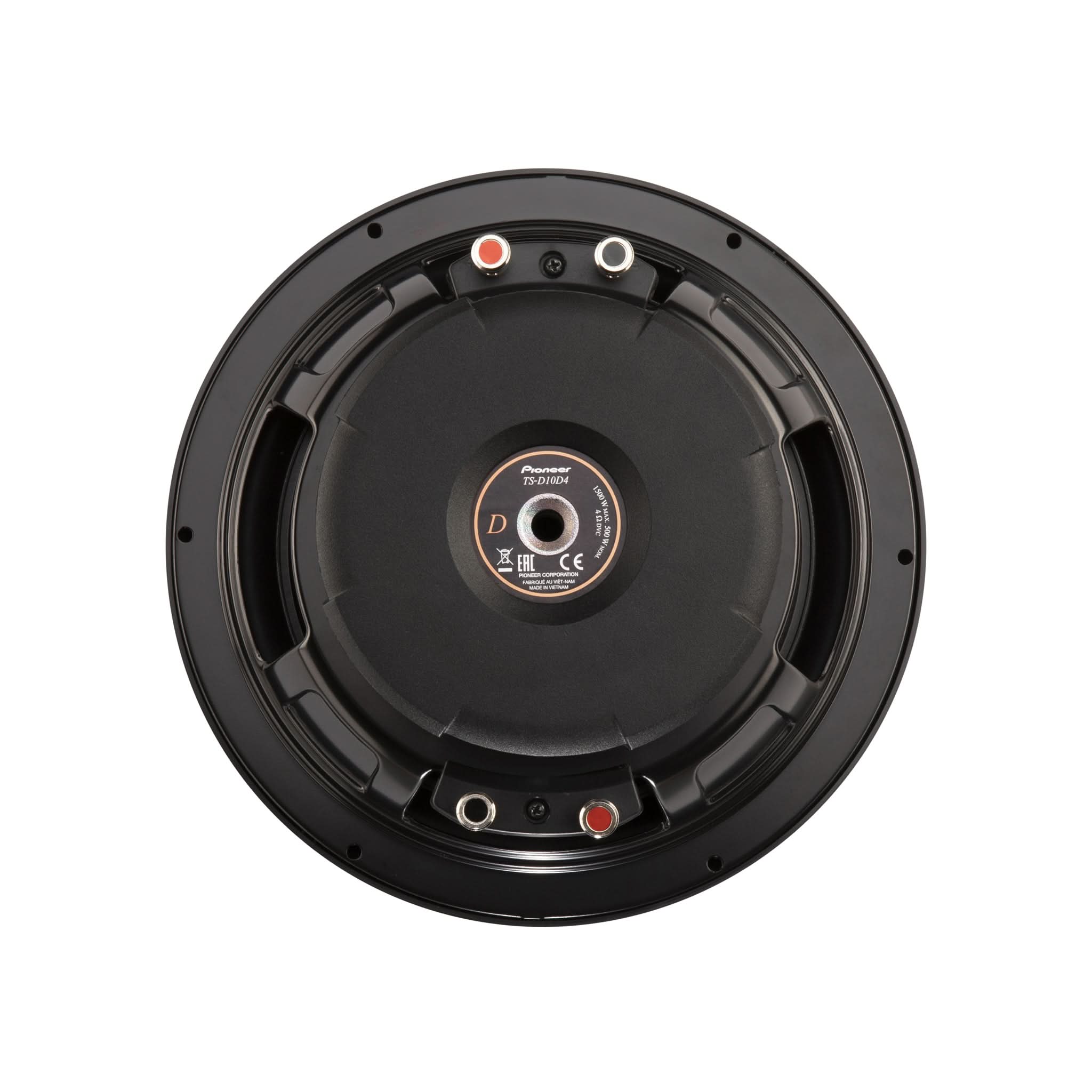

10″ – 1500 W Max Power. Dual 4 Ohm Voice Coil. Aramid Fiber IMPP™ cone. Rubber Surround – Subwoofer
Features
1500 Watts Max. Power / 500 Watts Nominal Power
10″ Aramid Fiber Interlaced IMPP™ cone
Butyl Rubber Surround & Meta-Aramid fiber spider
Frequency range: 20 Hz to 6.6 kHz
Speaker Impedance: 2x 4 ohms
Speaker Efficiency: 76 dB (1W/1M)
Mounting depth: 5.5 (140mm)
Recommended Box volume : 0.8cu.ft. (vented) / 0.7cu.ft. (sealed)
- TS-W3020PRO
This product fits your selected vehicle
12″ – 3500 W Max Power. Optimally Blended Pulp woofer Cone – PRO Series subwoofer … $260.00 Add to Compare
- TS-WX010A
This product fits your selected vehicle
Compact Amplified Subwoofer with a built-in 160 W (Max.) amplifier for passenger s… $200.00 Add to Compare
- TS-WX140DA
This product fits your selected vehicle
Compact Amplified Subwoofer with a built-in 170 W (Max.) amplifier for under-seat … $280.00 Add to Compare
- TS-WX1010A
This product fits your selected vehicle
10″ – 1100 W pre-loaded subwoofer. sealed box design and built-in 300 Class-D W am… $330.00 Add to Compare
- TS-A120D4
This product fits your selected vehicle
12″ – 1500 W Max Power. Dual 4 Ohm Voice Coil. IMPP™ cone. Rubber Surround – Compo… $70.00 Add to Compare
- TS-WX106B
This product fits your selected vehicle
10″ – 1100 W Max Power. Single 4-ohm Voice Coil. IMPP™ cone – Pre-loaded Subwoofer $110.00 Add to Compare
- TS-A2000LD2
This product fits your selected vehicle
8″ – 700 W Max power. Glass-fiber & Mica reinforced IMPP™ Cone. Dual 2 Ohm Voice C… $160.00 Add to Compare
- TS-A25S4
This product fits your selected vehicle
10″ – 1200 W Max Power. Single 4 Ohm Voice Coil. IMPP™ cone – Component Subwoofer $80.00 Add to Compare
- TS-WX1210A
This product fits your selected vehicle
12″ – 1300 W pre-loaded subwoofer. sealed box design and built-in 350 Class-D W am… $370.00 Add to Compare
- TS-A120S4E
This product fits your selected vehicle
12″ – 1400 W Max Power. Single 4 Ohm Voice Coil. IMPP™ cone. Rubber Surround – Com… $50.00 Add to Compare
TS-D10D4
Sale price $136.00 Regular price $160.00
Strike-Through Pricing and Savings
×
USA.Pioneer may display strikethrough pricing alongside a reduced advertised price in instances where an item is subject to a Sale. Instant Savings. Special Purchase. or Price Break. The strikethrough price shown represents the price advertised for this model on or in connection with Pioneer’s website as of 5/04/2026.
Add to Cart #shopify-section-template–27174808256881__main-product .yv-product-slider-wrapper {padding-top: 35px;} #shopify-section-template–27174808256881__main-product .yv-checkout-btn .add_to_cart.button {border-radius: 40px;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-disabled {display: none !important;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled {display: block; margin-top: -10px; text-align: left;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span {display: inline-block; border-bottom: 1px solid #181818; line-height: 1.4; cursor: pointer; transition: 0.2s all;} #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span:hover. #shopify-section-template–27174808256881__main-product .ps-widget.ps-enabled span:focus {border-bottom: 1px solid transparent;}
| Continuous Power handling (RMS) – Watts 500 | Frequency Response 20 Hz to 6.6 kHz |
| Maximum Peak Power Handling – Watts 1500 | Nominal Impedance – Ohm 4-Ohm dual |
| Sensitivity (1W/1m) 76dB | System-Type Component |
| CarSoundFit Yes | Cut Out dimensions 9″. 23 cm |
| Equivalent Compliance (VAS) 22.3 Liters. 0.78 Cu. Ft. | Free Air ResoNAnce (Fs) 41 |
| Linear Excursion (Xmax) 7/16″. 11 mm | Mounting Depth 5-1/2″. 14 cm |
| Port Diameter 2″. 5 cm | Port Length 5″. 13 cm |
| Recommended Ported Box Internal volume 19.8 Liters. 0.69 Cu. Ft. | Recommended Sealed Enclosure Volume 19.8 Liters. 0.7 Cu Ft |
| Total Speaker Q (Qts) 0.77 | Woofer Dimensions 10″ |
| Basket Material Stamped Metal | Cone Material IMPP – Aramid Fiber |
| Damper Aramid Fiber | Installation Ring ABS |
| Magnet Material Ferrite | Magnet Weight 56 oz |
| Surround Material Rubber | Surround Type Rolled |
| Voice Coil Bobbin Aluminum | Voice Coil Type Dual Voice Coil 4-ohm |
| Voice Coil wire Copper | Wire Terminals Push Type |
