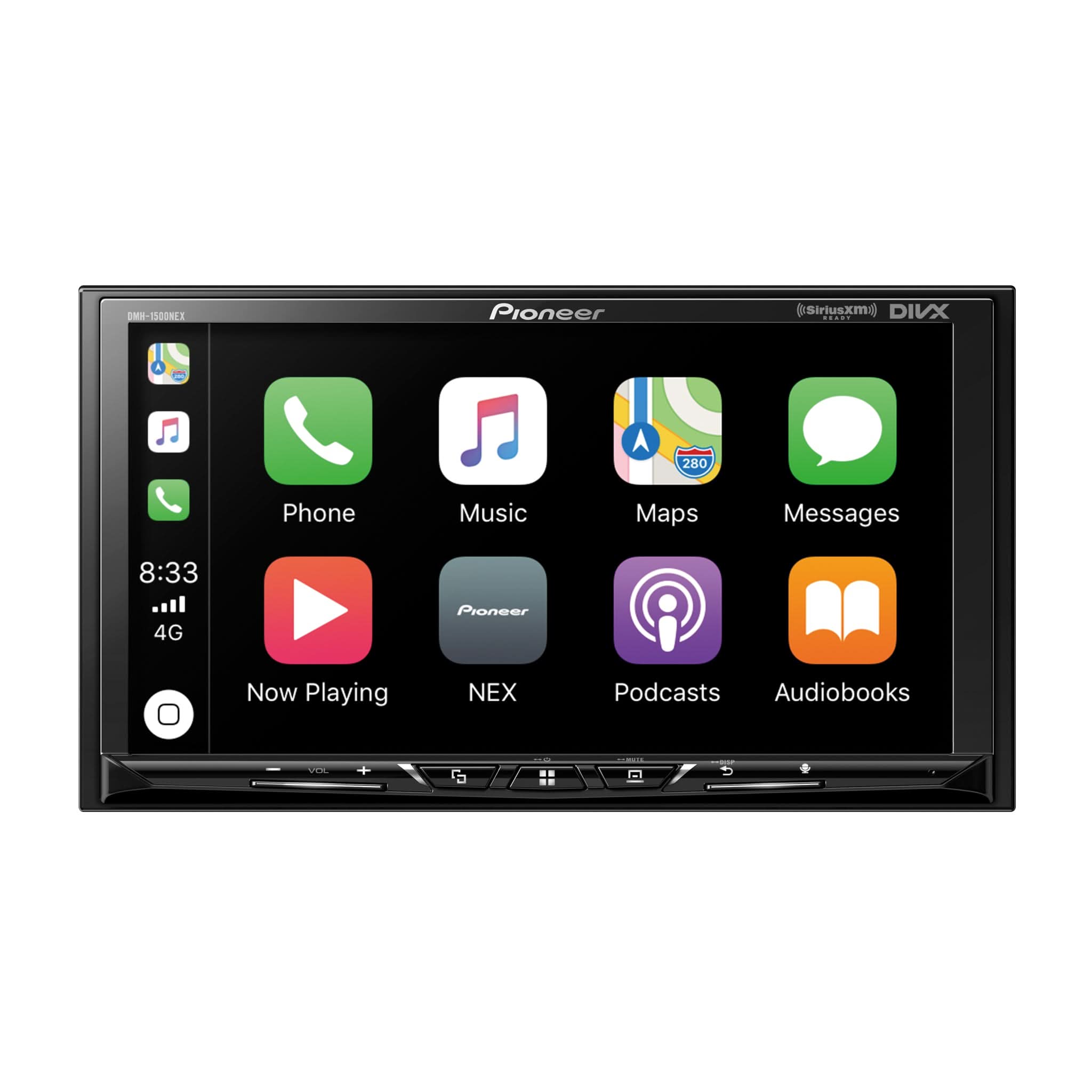

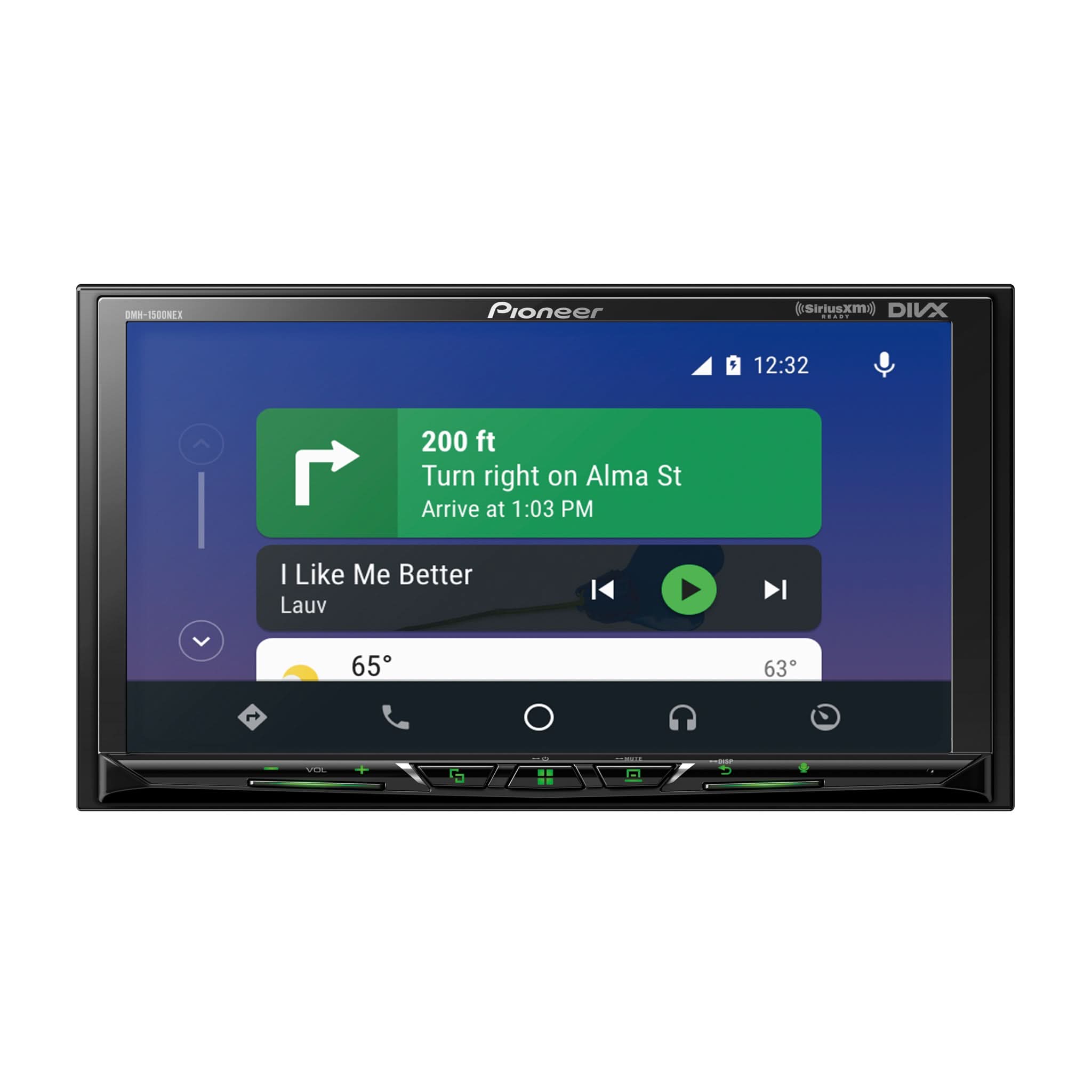

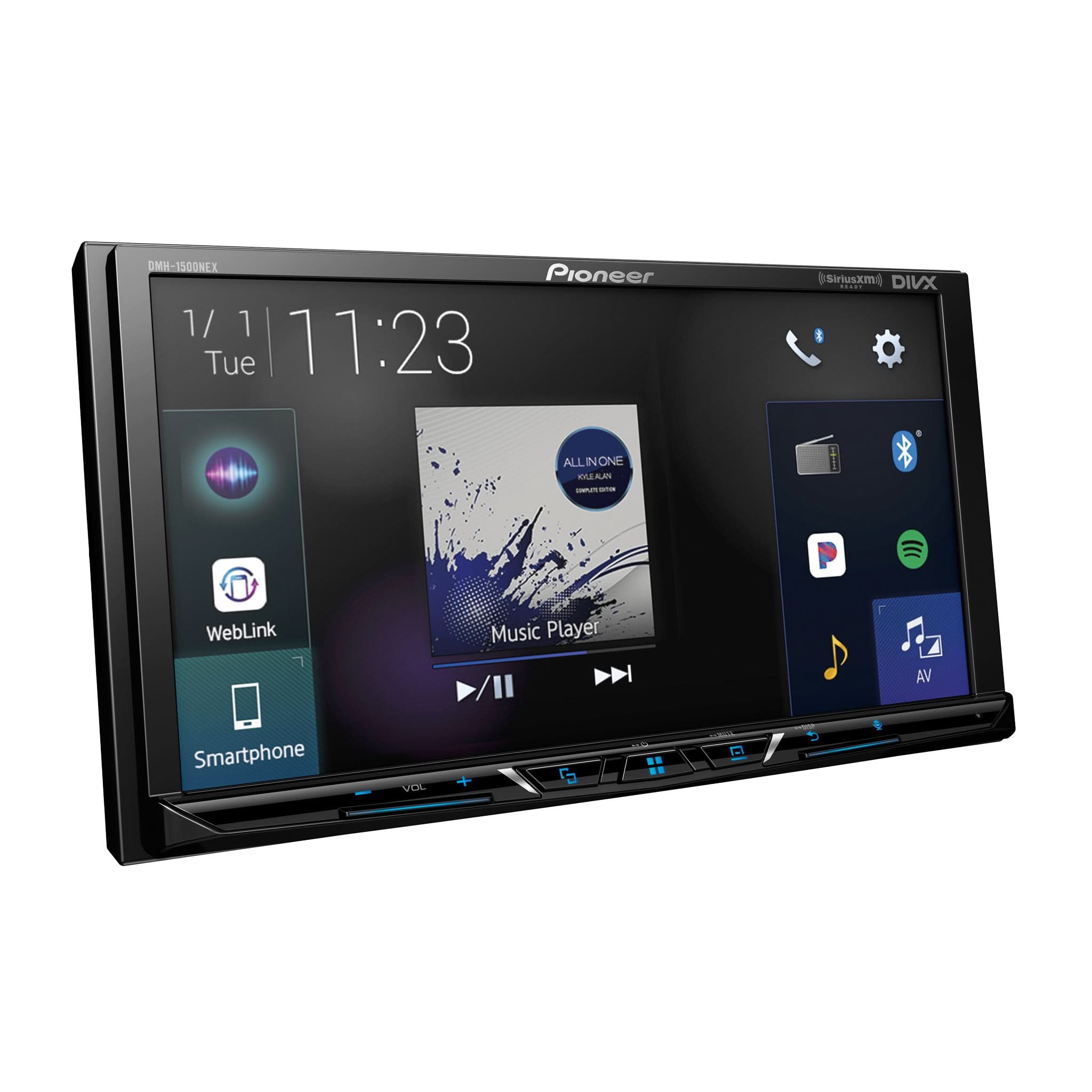

6.8″ – Apple CarPlay®. Android Auto™. Amazon Alexa via Pioneer Vozsis. Bluetooth® – Multimedia Digital Media Receiver
Features
Double-Din Chassis with 6.8″ WVGA capacitive display
Apple CarPlay® (Wired)
Android Auto™ (Wired)
Weblink® and Amazon Alexa
SiriusXM-Ready™
iDatalink® Maestro™ compatible
PRODUCT PERFORMANCE
| Continuous Power Output 22 W x 4-Channel |
Load Impedence Allowance 4 Ohm (4 Ohm to 8 Ohm Allowable) |
| Max Power Output 50 W x 4-ch 4 ohm .50 W x 2-ch 4 ohm 70 W X 1-ch (subwoofer) 2 Ohm |
RCA Preamp Outputs 6-ch |
| RCA Preout Voltage 4V |
RMS Power Output (CTA-2006) 14 W RMS x 4-ch 4 ohm |
GENERAL
| Detachable Face Security Fixed |
Multi-Language Display English. French. Spanish Portuguese. Chinese (Simplified) |
| Music Browser USB |

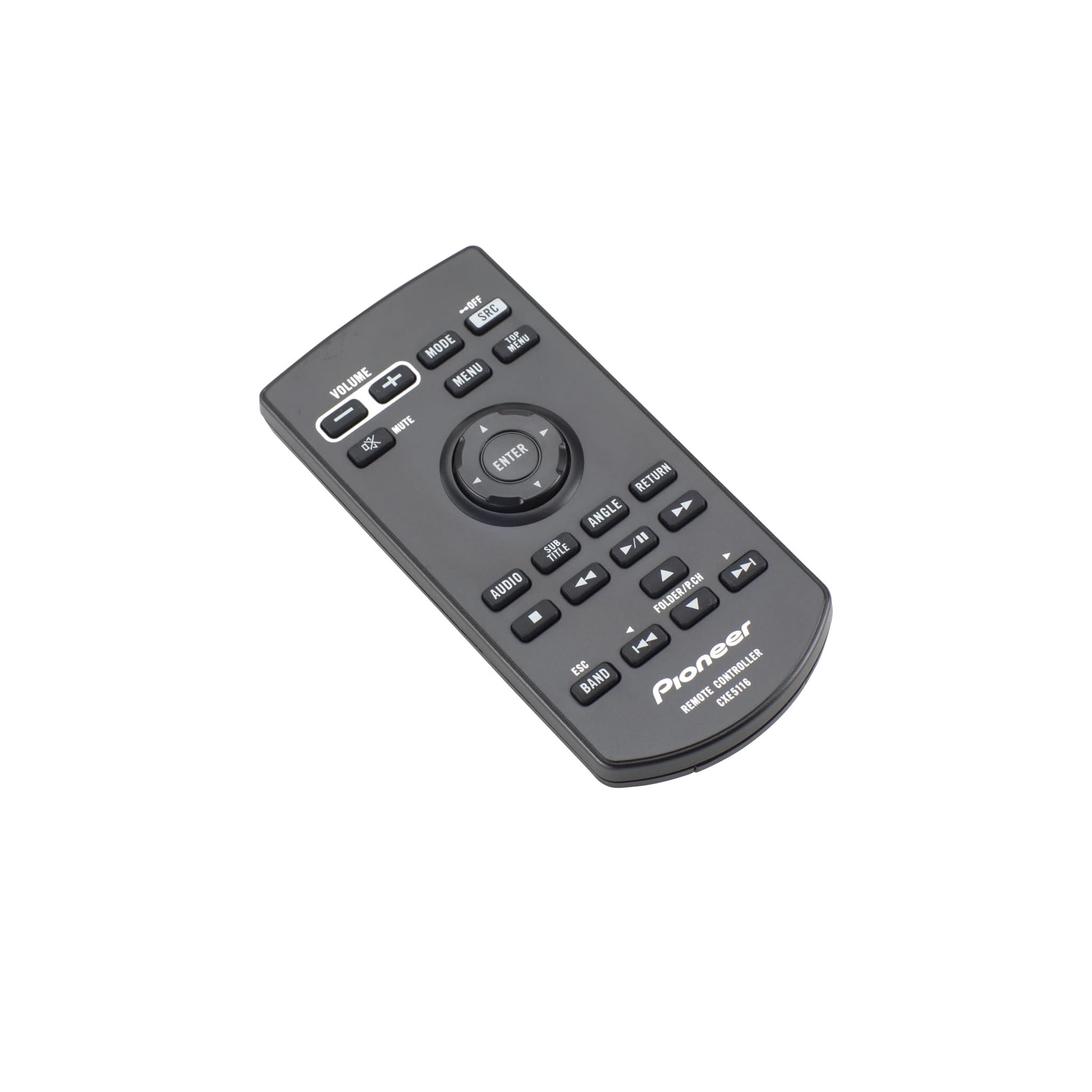

Remote Control Optional |
| Steering Wheel Control Ready (Adapter Sold Separately) Yes |
DISPLAY
| Back Light LED |
Brightness Control Yes |
| Color Customization 5 display colors. 112 key colors |
Device (Non-DIN/Modular Unit) 2-DIN |
| Dimmer Automatic with vehicle illumination. Timer Controlled. Manual |
Display Off Mode Yes |
| Home Screen Customization Yes |
Monitor Mechanism Fixed |
| Resolution WVGA (800 x 480) |
Screen Size/Aspect Ratio 7″/16:9 |
| Touch Screen Resistive |
BLUETOOTH
| Advanced Audio Distribution Profile (A2DP) Yes |
AVRCP 1.6 |
| Built-in Bluetooth® Yes |
Dual Phone Connection Yes |
| Hands-Free Yes |
Microphone Included Included |
| Phone Registation 5-phone |
Secure Simple Pairing (SSP) Yes |
| Serial Port Profile (SPP) Yes |
Sound Retriever Air Mode 1/Mode 2/Off |
TUNER
| Best Station Memory Yes |
Local Seek tuning Yes |
| Presets 18 FM. 6 AM |
RDS Yes |
| SiriusXM-Ready™ (Tuner Sold Separately) Yes |
INTEGRATION
| Amazon Alexa Paired with Pioneer Vozsis |
Android Auto™ Wired USB Connection |
| Apple® CarPlay Wired USB Connection |
Mobile Operating System Android.Apple iOS |
| Music Playback (MTP) Yes |
Pandora® Source through iPhone/Android |
| Pioneer App Compatibility Vozsis Android. Vozsis iPhone |
Siri® Eyes Free (VR) (Internet Required) iPhone Only |
| Spotify Streaming audio through iPhone/Android via Bluetooth or AUX input |
Voice Control Yes |
| Weblink Yes |
DIGITAL MEDIA PLAYBACK
| Audio Playback via USB MP3 Audio Playback.WMA Audio Playback.WAV Audio Playback (Hi-Res).AAC Audio Playback.FLAC Audio Playback (Hi-Res) |
Audio Video Playback via USB H.263.H.264..avi..mpg/mpeg..divx..mp4..3gp..mkv..mov..flv..wmv/.asf..m4v..ts/.m2ts/.mts |
| Image Display Via USB JPEG.BMP.PNG |
AUDIO
| Advanced Sound Retriever Mode-1/Mode-2/Off |
Audio Bass Boost Yes |
| Auto EQ (CD-MC20 Microphone sold separately) Yes |
Automatic Level Control Mode-1/Mode-2/Off |
| Balance Yes |
Built-in Amplifier MOSFET 50 W x 4 |
| Crossover Network Mode HPF/Band Pass/LPF |
Crossover Standard Mode HPF/LPF |
| Customizable Graphic Equalizer 13 Band |
DA Converter 24 Bit |
| Digital Signal Processor Built In |
Easy EQ (EEQ) Preset Equalizer Yes |
| Listening Position Selector Yes |
Loudness High/Mid/Low/Off |
| Speaker Output 4-ch |
Spectrum Analyzer Yes |
| Subwoofer Control Yes |
Time Alignment Auto.Manual |
EXPANDABILITY
| Audio Video Inputs Input 1 – Backup Camera Dedicated.Input 2 – AUX (Minijack).Input 3 – A/V or 2nd Camera |
OEM Integration iDatalink Maestro RR |
| Parking Assist Lines Yes |
RCA-Video-Output Yes |
| USB Single Rear Type-A (5V. 1-1/2 A) |
USB Direct Control for iPhone® 5s and newer |
